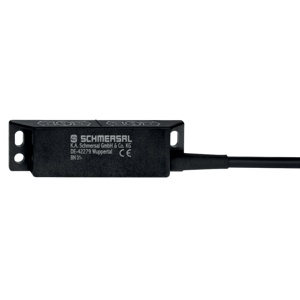

BN 31-RZ-1978-2: 101127663 - Schmersal Thermoplastic Enclosure Switch
Technical specifications of Thermoplastic Enclosure Switch BN 31-RZ-1978-2 101127663:
| Housing material | Glass-fibre, reinforced thermoplastic |
| Mounting | Enclosure with mounting slots |
| Switching current, maximum | 3 A |
| Switching capacity, maximum | 80 W |
Thermoplastic Enclosure Switch BN 31-RZ-1978-2, 101127663 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Housing construction form | rectangular |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of snap-in contacts | 1 |
| Actuating element | Magnet |
| Actuating speed, maximum | 18 m/s |
| Mounting | Enclosure with mounting slots |
| Repeat accuracy R | 0.3 mm |
| Termination | Connector M8 |
| Wire cross-section | 18 AWG |
| Material of the Cable mantle | H03VV-F |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +75 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching current, maximum | 3 A |
| Switching capacity, maximum | 80 W |
| Design of control elements | Reed contacts |
| Gross weight | 22 g |
Talk to Our Engineer for Thermoplastic Enclosure Switch BN 31-RZ-1978-2 part no: 101127663at unbeatable prices. The Main Technical Parameters of BN 31-RZ-1978-2, 101127663 are Magnetic drive working principle for precise and consistent performance. The sensor features a rectangular housing constructed from Glass-fibre, reinforced thermoplastic ensuring durability in harsh environments. The actuating element is a Magnet providing dependable switching action. The sensor is designed for easy installation with an Enclosure with mounting slots. It terminates through an Connector M8 ensuring secure and stable connections. Capable of handling a maximum switching current of 3 A and a switching capacity of up to 80 W this sensor is ideal for various industrial applications. The sensor is rated IP67 offering excellent protection against dust and water ingress, making it suitable for both indoor and outdoor use. With a lightweight design, the gross weight is only 22 g. Capture the Best Deal with a Quote for your requirement of Thermoplastic Enclosure Switch. Our promise: More affordable pricing and more personalized support than other Dealers.
