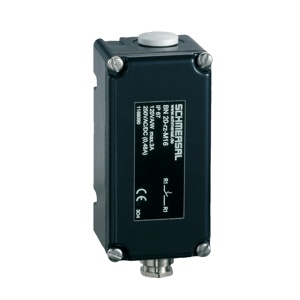

BN 20-RZ-M16: 101168090 - Schmersal Bias Magnet Magnetic Switch
Technical specification of Bias Magnet Magnetic Switch BN 20-RZ-M16 101168090:
| Switching distance Sn | 5 mm β¦ 50 mm |
| Termination | Screw terminals M20 x 1.5 |
| Switching voltage, maximum | 250 VAC |
| Gross weight | 290 g |
Bias Magnet Magnetic Switch BN 20-RZ-M16, 101168090 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Housing construction form | rectangular |
| Housing material | Aluminium |
| Active area | lateral |
| Actuating panels | lateral |
| Actuating element | Magnet |
| Actuating speed, maximum | 18 m/s |
| Switching distance Sn | 5 mm β¦ 50 mm |
| Repeat accuracy R | 0.3 mm |
| Termination | Screw terminals M20 x 1.5 |
| Length of sensor | 47 mm |
| Width of sensor | 104 mm |
| Height of sensor | 52 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +90 Β°C |
| Resistant to vibration | 50 g, on sine wave oscillation |
| Switching voltage, maximum | 250 VAC |
| Switching current, maximum | 3 A |
| Switching capacity, maximum | 120 VA |
| Switching element | bistable contact |
| Bounce duration, minimum | 0.3 ms |
| Bounce duration, maximum | 0.6 ms |
| Design of control elements | Reed contacts |
| Gross weight | 290 g |
