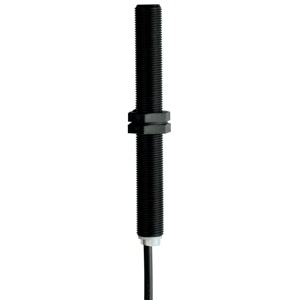

BN 120L-RZ/V 2,0M: 101210882 - Schmersal 10.7 mm Dia Magnetic Sensors
Technical Specifications of 10.7 mm Dia Magnetic Sensors BN 120L-RZ/V 2,0M 101210882:
| Working Principle | Magnetic drive |
| Switching Distance Sn | 3 mm β¦ 45 mm |
| Termination | Cable |
| Degree of Protection | IP67 |
Schmersal 10.7 mm Dia Magnetic Sensors, BN 120L-RZ/V 2,0M, 101210882 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Housing construction form | Cylinder, thread |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Active area | - |
| Number of normally closed (NC) | - |
| Actuating panels | front side |
| Actuating element | Magnet |
| Mounting | central with threated flange M12 x 1 |
| Switching distance Sn | 3 mm β¦ 45 mm |
| Length of cable | 2 m |
| Termination | Cable |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | LiYY |
| Diameter of sensor | 10.7 mm |
| Length of sensor | 102 mm |
| Width of sensor | - |
| Height of sensor | - |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 Β°C |
| Restistance to shock | 30 g / 11 ms |
| Resistant to vibration | 10 β¦ 55 Hz, amplitude 1 mm |
| Switching voltage, maximum | 200 VDC |
| Switching current, maximum | 1 A |
| Switching capacity, maximum | 30 VA |
| Switching element | bistable contact |
| Design of control elements | Reed contacts |
| Gross weight | 56 g |
Please speak to our Technical Engineer for 10.7 mm Dia Magnetic Sensors BN 120L-RZ/V 2,0M part no: 101210882 at attractive prices. Technical Specs Summary of BN 120L-RZ/V 2,0M, 101210882 includes Magnetic drive working principle, designed for precision and durability. The sensor features housing with an Cylinder, thread construction, made from Glass-fibre, reinforced thermoplastic ensuring high resistance to wear and environmental factors. It is easily mounted with a central with threated flange M12 x 1 providing secure installation. The sensor offers a switching distance (Sn) between 3 mm β¦ 45 mm making it versatile for various applications. It comes with a 2 m and Cable allowing for flexible installation options. The termination is designed for easy connection, supporting a maximum switching voltage of 200 VDC and a switching current of up to 1 A. The sensor uses an bistable contact switching element and operates at a maximum switching frequency of , ensuring rapid response times. Rated IP67 it is fully protected against dust and water ingress. With a lightweight design at just 56 g. Match Your Needs with a Quote for your requirement of 10.7 mm Dia Magnetic Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
