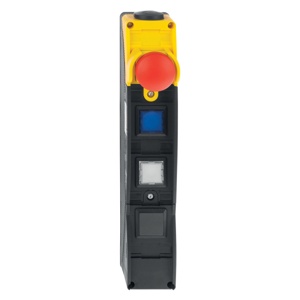

Schmersal BDF200-NHK-20-SWS20-LTBU-LTWH Control Panels
The Schmersal BDF200-NHK-20-SWS20-LTBU-LTWH Control Panels (Item No: 101215872) offers a 8 N actuating force, maximum, IP65degree of protection, 250 VAC rated insulation voltage Ui, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Control Panels. category, this model belongs to the Schmersal BDF200 Series.
| Brand | Schmersal |
| Product Type | Control Panels |
| Model Number | BDF200-NHK-20-SWS20-LTBU-LTWH |
Schmersal BDF200-NHK-20-SWS20-LTBU-LTWH Control Panels β Technical Specifications
| Specification | Value |
|---|---|
| Number of cable wires | 16 |
| Actuating stroke | 3 mm |
| Actuating force, maximum | 8 N |
| Note (Actuating force) | each contact |
| Contact force, typically | 1 N |
| Mounting | interior mounting holes |
| Type of the fixing screws | 2x M5 |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.7 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 0.8 Nm |
| Tightening torque of the cable gland, maximum | 4 Nm |
| Cable entry | M20 cable gland |
| Cable cross-section of the cable glands, minimum | 6 mm |
| Cable cross-section of the cable glands, maximum | 13 mm |
| Wire cross-section | 0.5 mm2 |
| Terminal (mechanical) | Removable screw terminals |
| Width | 40 mm |
| Height | 69 mm |
| Depth | 249 mm |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +65 Β°C |
| Resistance to vibrations | 10 β¦ 100 Hz, with 20 g |
| Restistance to shock | 100 g / 6 ms |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| LED current consumption (operating elements) | 16 mA |
| Rated operating voltage | 24 VDC |
| Switching principle | Slow action, cross-point-system |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 280 g |
Call us for Schmersal Protective Collor Control Panels BDF200-NHK-20-SWS20-LTBU-LTWH part no: 101215872 at the best rates. Technical Attributes of BDF200-NHK-20-SWS20-LTBU-LTWH, 101215872 are 8 N maximum actuating force to ensure secure and responsive operation. It features interior mounting holes for easy and stable installation. The M20 cable gland provides a secure cable entry, while the Removable screw terminals allows for efficient and reliable connections. With a rated insulation voltage of 250 VAC and a rated operating voltage of 24 VDC this interlock is well-suited for various safety applications. The switching principle utilizes Slow action, cross-point-system providing precise and dependable operation. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing offering durability and safety. The unit is rated with an IP65 degree of protection, making it resistant to dust and water ingress. Weighing 280 g. Unlock Exclusive Pricing with a Quote for your requirement of Schmersal Protective Collor Control Panels. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
