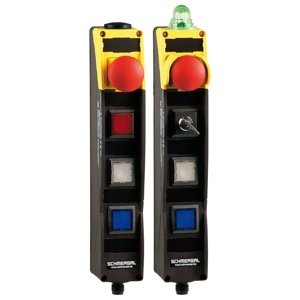

Schmersal BDF200-FB-NHK-WS20-LTBU-LTBU-G24 Control Panels
The Schmersal BDF200-FB-NHK-WS20-LTBU-LTBU-G24 Control Panels (Item No: 103025654) offers a 2 number of fail-safe digital outputs, 2.89 x 10β»ΒΉβ° /hPFH value, IP65 degree of protection, 24 VDC rated insulation voltage. Manufactured by Schmersal under the Schmersal Control Panels. category, this model belongs to the Schmersal BDF200 Series.
| Brand | Schmersal |
| Product Type | Control Panels |
| Model Number | BDF200-FB-NHK-WS20-LTBU-LTBU-G24 |
| Specification | Value |
|---|---|
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Reaction time, maximum | 50 ms |
| Duration of risk, maximum | 100 ms |
| Number of fail-safe digital outputs | 2 |
| PFH value | 2.89 x 10β»ΒΉβ° /h |
| Mounting | interior mounting holes |
| Type of the fixing screws | 2x M5 |
| Terminal (mechanical) | Connector plug M12, 8-pole, A-coded |
| Width | 40 mm |
| Height | 69 mm |
| Depth | 220 mm |
| Length x Width x Height | Depth: 233.5 - 252.5 mm (without and with indicator lamp) |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +65 Β°C |
| Storage and transport temperature | -25 ... +85 Β°C |
| Resistance to vibrations | 10 β¦ 150 Hz, amplitude 0.35 mm / 5 g |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
| Rated operating voltage | 24 VDC |
| Operating current | 600 mA |
| Required rated short-circuit current | 100 A |
| Switching frequency, maximum | 1 Hz |
| Designation, Safety inputs | X1 and X2 |
| Switching thresholds | β3 V β¦ 5 V (Low) 15 V β¦ 30 V (High) |
| Current consumption at 24 V | 5 mA |
| Designation, Safety outputs | Y1 and Y2 |
| Design of control elements | short-circuit proof, p-type |
| Operation current | 10 mA |
| Gross weight | 280 g |
Call us for Schmersal Blue Pushbuttons Control Panels BDF200-FB-NHK-WS20-LTBU-LTBU-G24 part no: 103025654 at the best rates. Technical Attributes of BDF200-FB-NHK-WS20-LTBU-LTBU-G24, 103025654 are housing material is crafted from Plastic, glass-fibre reinforced thermoplastic, self-extinguishing and durable, ensuring long-lasting protection. The sensor features a rapid reaction time of 50 ms making it highly responsive to safety-critical events. With a PFH value of 2.89 x 10β»ΒΉβ° /h it provides exceptional reliability in safety applications. The terminal is a robust Connector plug M12, 8-pole, A-coded allowing for secure and efficient connections. Rated for 24 VDC the solenoid interlock operates with minimal current consumption of just 5 mA making it energy-efficient. The unit boasts a IP65 degree of protection, safeguarding it against dust and water ingress. Weighing only 280 g. Pricing with a Quote for your requirement of Schmersal BDF200-FB-NHK-WS20-LTBU-LTBU-G24 Control Panels. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
