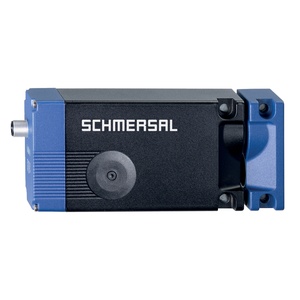

Schmersal AZM400Z-ST-I2-1P2P-DU Solenoid Interlocks
The Schmersal AZM400Z-ST-I2-1P2P-DU Solenoid Interlocks (Item No: 103044780) offers a Magnetic fieldRFID working principle, Connector M12, 8-pole, A-codedtermination, IP66IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM400Z-ST-I2-1P2P-DU |
Schmersal AZM400Z-ST-I2-1P2P-DU Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | High |
| Working principle | Magnetic fieldRFID |
| Housing material | Light alloy die-casting |
| Gross weight | 764 g |
| Holding force FZhin accordance with EN ISO 14119 | 10,000 N |
| Type of the fixing screws | 2x M6 |
| Termination | Connector M12, 8-pole, A-coded |
| Length of sensor | 46.7 mm |
| Width of sensor | 77.8 mm |
| Height of sensor | 156.7 mm |
| Degree of protection | IP66IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | 100 A |
| Magnet switch-on time | - |
| Test pulse duration, maximum | - |
| Test pulse interval, minimum | - |
| Voltage, Utilisation category AC-15 | - |
| Voltage, Utilisation category DC-13 | - |
IndMALL Automation Dealing offers Schmersal Solenoid interlocks AZM400Z-ST-I2-1P2P-DU part no: 103044780 at unbeatable prices. The Main Technical Parameters of AZM400Z-ST-I2-1P2P-DU, 103044780 feature Magnetic fieldRFID safety switch, designed for durability and reliability in industrial environments. The housing is made of Light alloy die-casting, ensuring a lightweight yet robust construction with a gross weight of 764 g. It features an Connector M12, 8-pole, A-coded system, facilitating easy installation. With dimensions of 46.7 mm in length, 77.8 mm in width, and 156.7 mm in height, it is compact yet highly efficient. The IP66IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Take the First Step with a Quote for your requirement of Solenoid interlocks. Choose us for unparalleled pricing and support over other Dealers & Distributors.
