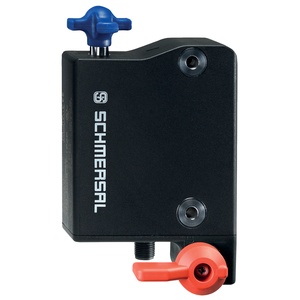

Schmersal AZM300Z-I1-ST-AS-P Solenoid Interlocks
The Schmersal AZM300Z-I1-ST-AS-P Solenoid Interlocks (Item No: 103005922) offers a RFID working principle, Connector plug M12, 4-pole, (A-coding)termination, IP66IP67IP69 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM300Z-I1-ST-AS-P |
Schmersal AZM300Z-I1-ST-AS-P Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | High |
| Working principle | RFID |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 618 g |
| Holding force FZhin accordance with EN ISO 14119 | 1,150 N |
| Type of the fixing screws | 2x M6 |
| Termination | Connector plug M12, 4-pole, (A-coding) |
| Length of sensor | 120 mm |
| Width of sensor | 87.5 mm |
| Height of sensor | 35 mm |
| Degree of protection | IP66IP67IP69 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | - |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | - |
| Test pulse interval, minimum | - |
| Voltage, Utilisation category AC-15 | - |
| Voltage, Utilisation category DC-13 | - |
| Power to unlock | Yes |
Talk to Our Engineer for Schmersal Solenoid interlocks AZM300Z-I1-ST-AS-P part no: 103005922 with exclusive offers. Core System Specifications of AZM300Z-I1-ST-AS-P, 103005922 are RFID safety switch, designed for durability and reliability in industrial environments. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing, ensuring a lightweight yet robust construction with a gross weight of 618 g. It features an Connector plug M12, 4-pole, (A-coding) system, facilitating easy installation. With dimensions of 120 mm in length, 87.5 mm in width, and 35 mm in height, it is compact yet highly efficient. The IP66IP67IP69 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Don't Miss Out on a Quote for your requirement of Solenoid interlocks. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
