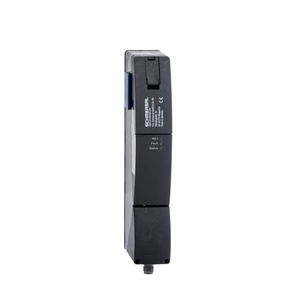

Schmersal AZM201B-ST-T-AS-P Solenoid Interlocks
The Schmersal AZM201B-ST-T-AS-P Solenoid Interlocks (Item No: 103025859) offers a RFID working principle, Connector plug M12, 4-pole, (A-coding)termination, IP66IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM201B-ST-T-AS-P |
Schmersal AZM201B-ST-T-AS-P Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Working principle | RFID |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 537 g |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Actuating speed, maximum | 0.2 m/s |
| Type of the fixing screws | 2x M6 |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.7 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 1 Nm |
| Termination | Connector plug M12, 4-pole, (A-coding) |
| Length of sensor | 50 mm |
| Width of sensor | 40 mm |
| Height of sensor | 235.5 mm |
| Degree of protection | IP66IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | - |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | - |
| Test pulse interval, minimum | - |
| Voltage, Utilisation category AC-15 | - |
| Voltage, Utilisation category DC-13 | - |
| Switching element | - |
| Power to unlock | Yes |
| Cable entry | - |
Mail Us for your needs in Schmersal Solenoid interlocks AZM201B-ST-T-AS-P part no: 103025859 with budget-friendly prices. The Main Technical Parameters of AZM201B-ST-T-AS-P, 103025859 include RFID safety switch, designed for durability and reliability in industrial environments. The housing is made of Glass-fibre, reinforced thermoplastic, ensuring a lightweight yet robust construction with a gross weight of 537 g. It features an Connector plug M12, 4-pole, (A-coding) system, facilitating easy installation. With dimensions of 50 mm in length, 40 mm in width, and 235.5 mm in height, it is compact yet highly efficient. The IP66IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Customize Your Experience with a Quote for your requirement of Solenoid interlocks. Experience the difference with our competitive pricing and superior support over other Suppliers.
