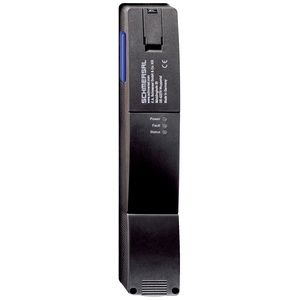

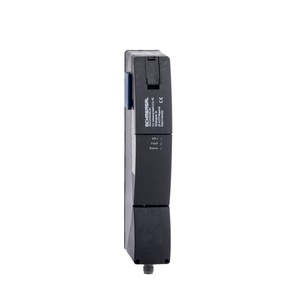

Schmersal AZM201B-I2-CC-T-1P2PW Solenoid Interlocks
The Schmersal AZM201B-I2-CC-T-1P2PW Solenoid Interlocks (Item No: 103013488) offers a RFID working principle, Spring pulley connectiontermination, IP66IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM201B-I2-CC-T-1P2PW |
Schmersal AZM201B-I2-CC-T-1P2PW Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | High |
| Working principle | RFID |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 577 g |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Actuating speed, maximum | 0.2 m/s |
| Type of the fixing screws | 2x M6 |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.7 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 1 Nm |
| Termination | Spring pulley connection |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 50 mm |
| Width of sensor | 40 mm |
| Height of sensor | 220 mm |
| Degree of protection | IP66IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | 100 A |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 40 ms |
| Voltage, Utilisation category AC-15 | - |
| Voltage, Utilisation category DC-13 | - |
| Switching element | - |
| Power to unlock | Yes |
| Cable entry | 1 x M20 |
Send Your Inquiry for Schmersal Solenoid interlocks AZM201B-I2-CC-T-1P2PW part no: 103013488 with cost-effective solutions. Essential Technical Specs of AZM201B-I2-CC-T-1P2PW, 103013488 are RFID safety switch, designed for durability and reliability in industrial environments. The housing is made of Glass-fibre, reinforced thermoplastic, ensuring a lightweight yet robust construction with a gross weight of 577 g. It features an Spring pulley connection system, facilitating easy installation. With dimensions of 50 mm in length, 40 mm in width, and 220 mm in height, it is compact yet highly efficient. The IP66IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Capture the Best Deal with a Quote for your requirement of Solenoid interlocks. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
