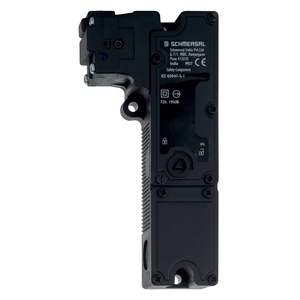

Schmersal AZM190-11/01RK-24VDC Solenoid Interlocks
The Schmersal AZM190-11/01RK-24VDC Solenoid Interlocks (Item No: 131029937) offers a electromechanical working principle, Screw terminalstermination, IP65IP67 degree of protection, 250 VAC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM190-11/01RK-24VDC |
Schmersal AZM190-11/01RK-24VDC Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Working principle | electromechanical |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 480 g |
| Holding force FZhin accordance with EN ISO 14119 | 1,950 N |
| Latching force | 20 N |
| Positive break force, minimum | 20 N |
| Actuating speed, maximum | 0.3 m/s |
| Mounting | Screws |
| Type of the fixing screws | 2x M5 |
| Termination | Screw terminals |
| Cable section, minimum | 0.5 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 41 mm |
| Width of sensor | 52 mm |
| Height of sensor | 178 mm |
| Degree of protection | IP65IP67 |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 4 A |
| Rated control voltage | 24 VDC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 8.5 W |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,200 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Switching element | NO contact, NC contact |
| Power to unlock | Yes |
| Cable entry | 2 x M20 x 1,5 |
Please speak to our Technical Engineer for Schmersal Solenoid interlocks AZM190-11/01RK-24VDC part no: 131029937 at attractive prices. Technical Specs Summary of AZM190-11/01RK-24VDC, 131029937 includes electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Glass-fibre, reinforced thermoplastic, ensuring a lightweight yet robust construction with a gross weight of 480 g. It features an Screw terminals system, facilitating easy installation. With dimensions of 41 mm in length, 52 mm in width, and 178 mm in height, it is compact yet highly efficient. The IP65IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 250 VAC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 4 kV, providing high surge protection. Match Your Needs with a Quote for your requirement of Solenoid interlocks. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
