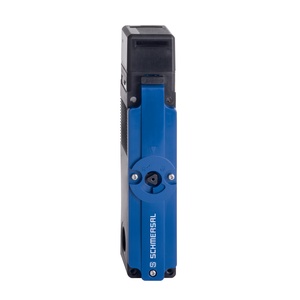

Schmersal AZM150SK-11/11R-024 Solenoid Interlocks
The Schmersal AZM150SK-11/11R-024 Solenoid Interlocks (Item No: 153041253) offers a electromechanical working principle, Screw terminalstermination, IP65IP67 degree of protection, 300 V rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM150SK-11/11R-024 |
Schmersal AZM150SK-11/11R-024 Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Working principle | electromechanical |
| Housing material | Thermoplastic, Polyamide PA 6 GF |
| Gross weight | 602 g |
| Holding force FZhin accordance with EN ISO 14119 | 1,500 N |
| Latching force | - |
| Positive break travel | 10 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | 40 N |
| Actuating speed, maximum | 0.3 m/s |
| Mounting | Screws |
| Type of the fixing screws | 4x M5 |
| Termination | Screw terminals |
| Cable section, minimum | 0.25 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Length of sensor | 48 mm |
| Width of sensor | 40 mm |
| Height of sensor | 204 mm |
| Degree of protection | IP65IP67 |
| Rated insulation voltage Ui | 300 V |
| Rated impulse withstand voltage Uimp | - |
| Thermal test current | 5 A |
| Rated control voltage | 24 VDC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 8.5 W |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Switching element | NC contact, NO contact |
| Power to unlock | Yes |
| Cable entry | 3 x M20 x 1,5 |
Send Your Inquiry for Schmersal Solenoid interlocks AZM150SK-11/11R-024 part no: 153041253 with cost-effective solutions. Essential Technical Specs of AZM150SK-11/11R-024, 153041253 are electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Thermoplastic, Polyamide PA 6 GF, ensuring a lightweight yet robust construction with a gross weight of 602 g. It features an Screw terminals system, facilitating easy installation. With dimensions of 48 mm in length, 40 mm in width, and 204 mm in height, it is compact yet highly efficient. The IP65IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 300 V, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of -, providing high surge protection. Capture the Best Deal with a Quote for your requirement of Solenoid interlocks. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
