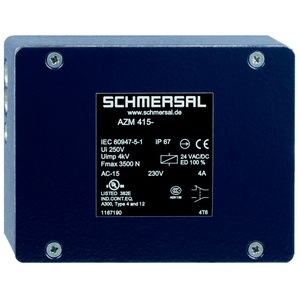

Schmersal AZM 415-02/02ZPKA 24VAC/DC Solenoid Interlocks
The Schmersal AZM 415-02/02ZPKA 24VAC/DC Solenoid Interlocks (Item No: 101186204) offers a electromechanical working principle, Screw terminals M20 x 1.5termination, IP67 degree of protection, 250 VAC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 415-02/02ZPKA 24VAC/DC |
Schmersal AZM 415-02/02ZPKA 24VAC/DC Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Working principle | electromechanical |
| Housing material | Aluminium |
| Gross weight | 910 g |
| Holding force FZhin accordance with EN ISO 14119 | 3,500 N |
| Latching force | - |
| Positive break travel | 5 mm |
| Positive break force per NC contact, minimum | - |
| Positive break force, minimum | 15 N |
| Actuating speed, maximum | 0.2 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 2 x 0.75 mmΒ² |
| Cable section, maximum | 2 x 2.5 mmΒ² |
| Length of sensor | 46.5 mm |
| Width of sensor | 130 mm |
| Height of sensor | 100 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 6 A |
| Rated control voltage | 24 VAC/DC |
| Required rated short-circuit current | - |
| Electrical power consumption, maximum | 10 W |
| Switching principle | Slow action |
| Maximum switching frequency | - |
| Material of the contacts, electrical | Silver |
| Switching element | Opener (NC) |
| Power to unlock | - |
| Cable entry | - |
Get A Quote for Schmersal Solenoid interlocks AZM 415-02/02ZPKA 24VAC/DC part no: 101186204 at the best price. Here are the brief Technical Specifications of AZM 415-02/02ZPKA 24VAC/DC, 101186204 are electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Aluminium, ensuring a lightweight yet robust construction with a gross weight of 910 g. It features an Screw terminals M20 x 1.5 system, facilitating easy installation. With dimensions of 46.5 mm in length, 130 mm in width, and 100 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 250 VAC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 4 kV, providing high surge protection. It's Time to get a Quote for your requirement of Solenoid interlocks. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
