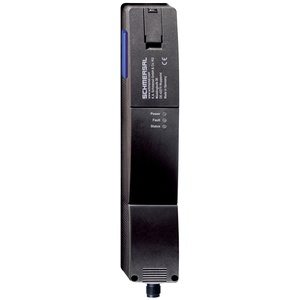

Schmersal AZM 200ST-T-AS AP Safety Switches
The Schmersal AZM 200ST-T-AS AP Safety Switches (Item No: 101190948) offers a 1,000,000 Operations mechanical life, minimum, Connector plug M12, 4-pole, (A-coding) termination, IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Safety Switches. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Safety switch |
| Model Number | AZM 200ST-T-AS AP |
Schmersal AZM 200ST-T-AS AP Safety Switches – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Reaction time, maximum | 60 ms |
| Gross weight | 523 g |
| Safety classification - Category | 4 |
| PFH value | 4.00 x 10⁻⁹ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Mission time | 20 Year(s) |
| Mechanical life, minimum | 1,000,000 Operations |
| Termination | Connector plug M12, 4-pole, (A-coding) |
| Length of sensor | 50 mm |
| Width of sensor | 40 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +60 °C |
| Storage and transport temperature | -25 ... +85 °C |
| Relative humidity, minimum | 30 % |
| Relative humidity, maximum | 95 % |
| Ambient conditions - Note (Relative humidity) | non-condensing |
| Resistance to vibrations | 10 … 150 Hz, amplitude 0.35 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated operating voltage | 26.5 ... 31.6 VDC (Protection against polarity reversal) |
Obtain a Quote for Schmersal Safety Switches AZM 200ST-T-AS AP Item No: 101190948 at economical prices. Specifications Overview for AZM 200ST-T-AS AP, 101190948 reveals housed in a rugged Plastic, glass-fibre reinforced thermoplastic, self-extinguishing body, this unit is designed to withstand demanding environments. It offers a maximum reaction time of 60 ms and a PFH value of 4.00 x 10⁻⁹ /h, making it highly dependable for SIL-rated systems. The control panel features an Connector plug M12, 4-pole, (A-coding) for secure and easy termination. With sensor dimensions of 50 mm in length and 40 mm in width, it fits seamlessly into various control setups. Rated for both IP67 protection, it operates efficiently in ambient temperatures from -25 ... +60 °C and endures storage conditions up to -25 ... +85 °C. It supports a rated insulation voltage Ui of 32 VDC, a rated impulse withstand voltage Uimp of 0.8 kV, and operates on 26.5 ... 31.6 VDC (Protection against polarity reversal). Take the First Step with a Quote for your requirement of Safety Switches AZM 200ST-T-AS AP. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
