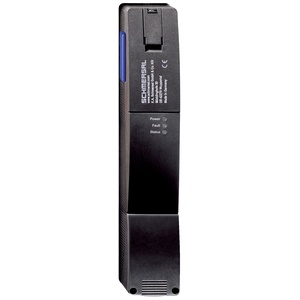

Schmersal AZM 200CC-T-1P2PW Solenoid Interlocks
The Schmersal AZM 200CC-T-1P2PW Solenoid Interlocks (Item No: 101205479) offers a inductive working principle, Spring pulley connectiontermination, IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 200CC-T-1P2PW |
Schmersal AZM 200CC-T-1P2PW Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Working principle | inductive |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 560 g |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Positive break travel | - |
| Positive break force per NC contact, minimum | - |
| Positive break force, minimum | - |
| Actuating speed, maximum | 0.2 m/s |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.7 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 1 Nm |
| Termination | Spring pulley connection |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 50 mm |
| Width of sensor | 40 mm |
| Height of sensor | 220 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Thermal test current | - |
| Rated control voltage | - |
| Required rated short-circuit current | - |
| Electrical power consumption, maximum | - |
| Switching principle | - |
| Maximum switching frequency | - |
| Magnet switch-on time | 100 % |
| Power to unlock | Yes |
| Cable entry | - |
Please speak to our Technical Engineer for Schmersal Solenoid interlocks AZM 200CC-T-1P2PW part no: 101205479 at attractive prices. Technical Specs Summary of AZM 200CC-T-1P2PW, 101205479 includes inductive safety switch, designed for durability and reliability in industrial environments. The housing is made of Glass-fibre, reinforced thermoplastic, ensuring a lightweight yet robust construction with a gross weight of 560 g. It features an Spring pulley connection system, facilitating easy installation. With dimensions of 50 mm in length, 40 mm in width, and 220 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Match Your Needs with a Quote for your requirement of Solenoid interlocks. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
