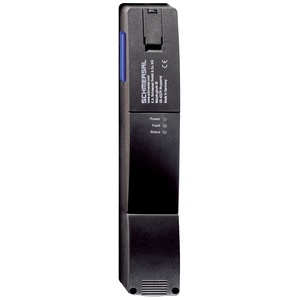

Schmersal AZM 200 B SK-T-1P2PWA Solenoid Interlocks
The Schmersal AZM 200 B SK-T-1P2PWA Solenoid Interlocks (Item No: 101195441) offers a inductive working principle, Screw terminals M20 x 1.5termination, IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 200 B SK-T-1P2PWA |
Schmersal AZM 200 B SK-T-1P2PWA Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Working principle | inductive |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 550 g |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Positive break travel | - |
| Positive break force per NC contact, minimum | - |
| Positive break force, minimum | - |
| Actuating speed, maximum | 0.2 m/s |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.7 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 1 Nm |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 50 mm |
| Width of sensor | 40 mm |
| Height of sensor | 220 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Thermal test current | - |
| Rated control voltage | - |
| Required rated short-circuit current | - |
| Electrical power consumption, maximum | - |
| Switching principle | - |
| Maximum switching frequency | - |
| Material of the contacts, electrical | - |
| Magnet switch-on time | 100 % |
| Power to unlock | - |
| Cable entry | - |
Ask for the Pricing of Schmersal Solenoid interlocks AZM 200 B SK-T-1P2PWA part no: 101195441 at unbeatable prices. Detailed Specifications of AZM 200 B SK-T-1P2PWA, 101195441 feature inductive safety switch, designed for durability and reliability in industrial environments. The housing is made of Glass-fibre, reinforced thermoplastic, ensuring a lightweight yet robust construction with a gross weight of 550 g. It features an Screw terminals M20 x 1.5 system, facilitating easy installation. With dimensions of 50 mm in length, 40 mm in width, and 220 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Now's the Time to Secure a Quote for your requirement of Solenoid interlocks. We're committed to offering more favorable pricing and more responsive support than other Traders.
