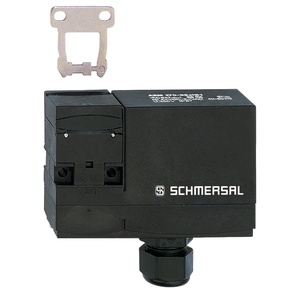

Schmersal AZM 170SK-02ZRIA-B6R 24VAC/DC Solenoid Interlocks
The Schmersal AZM 170SK-02ZRIA-B6R 24VAC/DC Solenoid Interlocks (Item No: 101217958) offers a electromechanical working principle, Screw terminalstermination, IP67 degree of protection, 250 VAC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 170SK-02ZRIA-B6R 24VAC/DC |
Schmersal AZM 170SK-02ZRIA-B6R 24VAC/DC Solenoid Interlocks โ Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | High |
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 350 g |
| Holding force FZhin accordance with EN ISO 14119 | 1,000 N |
| Latching force | 30 N |
| Positive break travel | 11 mm |
| Positive break force per NC contact, minimum | 8.5 N |
| Positive break force, minimum | 17 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 2x M5 |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.7 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 1 Nm |
| Termination | Screw terminals |
| Cable section, minimum | 0.25 mmยฒ |
| Cable section, maximum | 1.5 mmยฒ |
| Length of sensor | 30 mm |
| Width of sensor | 90 mm |
| Height of sensor | 84 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 6 A |
| Rated control voltage | 24 VAC/DC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 12 W |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Switching element | 2 NC contact |
| Power to unlock | - |
| Cable entry | 1 x M20 x 1,5 |
Please speak to our Technical Engineer for Schmersal Solenoid interlocks AZM 170SK-02ZRIA-B6R 24VAC/DC part no: 101217958 at attractive prices. Technical Specs Summary of AZM 170SK-02ZRIA-B6R 24VAC/DC, 101217958 includes electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing, ensuring a lightweight yet robust construction with a gross weight of 350 g. It features an Screw terminals system, facilitating easy installation. With dimensions of 30 mm in length, 90 mm in width, and 84 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 250 VAC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 4 kV, providing high surge protection. Match Your Needs with a Quote for your requirement of Solenoid interlocks. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
