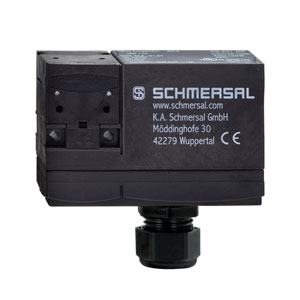

Schmersal AZM 170-11ZRK 24VAC/DC Solenoid Interlock
The Schmersal AZM 170-11ZRK 24VAC/DC Solenoid interlocks (Item No: 101140788) offers a 1,300 N holding force Fmax, maximum, 8.5 N positive break force, minimum, IP67 degree of protection, 250 VAC Rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid interlocks category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlock |
| Model Number | AZM 170-11ZRK 24VAC/DC |
| Specification | Value |
|---|---|
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 270 g |
| Holding force Fmax, maximum | 1,300 N |
| Latching force | 30 N |
| Positive break travel | 11 mm |
| Positive break force per NC contact, minimum | 8.5 N |
| Positive break force, minimum | 8.5 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 2x M5 |
| Cable entry | 1 x M20 x 1,5 |
| Termination | IDC method of termination |
| Cable section, minimum | 0.75 mmΒ² |
| Allowed type of cable | flexible |
| Length of sensor | 30 mm |
| Height of sensor | 90 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +60 Β°C |
| Storage and transport temperature | -25 ... +85 Β°C |
| Protection class | II |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Degree of pollution | 3 |
| Rated control voltage | 24 VAC/DC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 12 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
Request Pricing for Schmersal Screws Mounting Solenoid Interlock AZM 170-11ZRK 24VAC/DC (Part No: 101140788) at unbeatable prices with IndMALL Automation. Engineered with an electromechanical working principle, this solenoid interlock guarantees consistent and reliable performance in demanding industrial settings. The rugged housing, constructed from glass-fiber reinforced, self-extinguishing thermoplastic, enhances safety and durability. It features a cable entry port (1 x M20 x 1.5) for secure and seamless connections, while the IDC termination method ensures efficient and reliable wiring. The compact build, with dimensions of 30 mm (L) x 90 mm (W) x 84 mm (H), makes it a perfect fit for various industrial applications. Operating at a rated insulation voltage of 250 VAC, it utilizes a slow-action, positive-break NC contact switching principle for fail-safe protection. Get your quote today for the Schmersal AZM 170-11ZRK and benefit from exceptional pricing and superior support, outperforming other distributors and suppliers.
