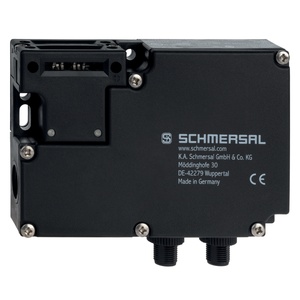

Schmersal AZM 161ST-12/11I-024-B6R Solenoid Interlocks
The Schmersal AZM 161ST-12/11I-024-B6R Solenoid Interlocks (Item No: 103031986) offers a electromechanical working principle, Connector plug M12, 4-pole, (A-coding)Connector plug M12, 8-pole, (A-coding)termination, IP67 degree of protection, Connector, 4 poles - 250 VConnector, 8 poles - 60 V rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 161ST-12/11I-024-B6R |
Schmersal AZM 161ST-12/11I-024-B6R Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | High |
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 400 g |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Positive break travel | 10 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | 20 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 3x M6 |
| Termination | Connector plug M12, 4-pole, (A-coding)Connector plug M12, 8-pole, (A-coding) |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 30 mm |
| Width of sensor | 130 mm |
| Height of sensor | 90 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | Connector, 4 poles - 250 VConnector, 8 poles - 60 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 2 A |
| Rated control voltage | 24 VAC/DC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 10 W |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Switching element | NO contact, NC contact |
| Power to unlock | Yes |
| Cable entry | - |
Mail Us for your needs in Schmersal Solenoid interlocks AZM 161ST-12/11I-024-B6R part no: 103031986 with budget-friendly prices. The Main Technical Parameters of AZM 161ST-12/11I-024-B6R, 103031986 include electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing, ensuring a lightweight yet robust construction with a gross weight of 400 g. It features an Connector plug M12, 4-pole, (A-coding)Connector plug M12, 8-pole, (A-coding) system, facilitating easy installation. With dimensions of 30 mm in length, 130 mm in width, and 90 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of Connector, 4 poles - 250 VConnector, 8 poles - 60 V, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 4 kV, providing high surge protection. Customize Your Experience with a Quote for your requirement of Solenoid interlocks. Experience the difference with our competitive pricing and superior support over other Suppliers.
