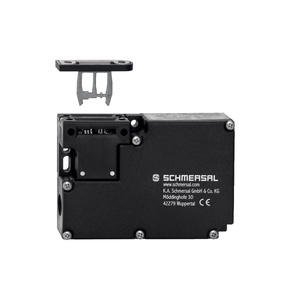

Schmersal AZM 161SK-12/12RIAT-024G-B6R Solenoid Interlocks
The Schmersal AZM 161SK-12/12RIAT-024G-B6R Solenoid Interlocks (Item No: 103014449) offers a electromechanical working principle, Screw terminalstermination, IP67 degree of protection, 250 VAC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 161SK-12/12RIAT-024G-B6R |
Schmersal AZM 161SK-12/12RIAT-024G-B6R Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | High |
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | - |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Positive break travel | 10 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | 20 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 3x M6 |
| Termination | Screw terminals |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 30 mm |
| Width of sensor | 130 mm |
| Height of sensor | 90 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 6 A |
| Rated control voltage | 24 VAC/DC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 10 W |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Switching element | NO contact, NC contact |
| Power to unlock | - |
| Cable entry | 2 x M16 x 1.5 |
IndMALL Automation Dealing offers Schmersal Solenoid interlocks AZM 161SK-12/12RIAT-024G-B6R part no: 103014449 at unbeatable prices. The Main Technical Parameters of AZM 161SK-12/12RIAT-024G-B6R, 103014449 feature electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing, ensuring a lightweight yet robust construction with a gross weight of -. It features an Screw terminals system, facilitating easy installation. With dimensions of 30 mm in length, 130 mm in width, and 90 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 250 VAC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 4 kV, providing high surge protection. Take the First Step with a Quote for your requirement of Solenoid interlocks. Choose us for unparalleled pricing and support over other Dealers & Distributors.
