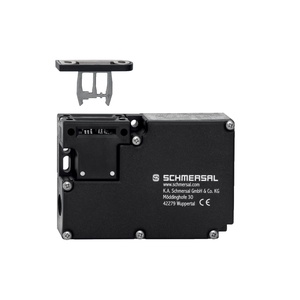

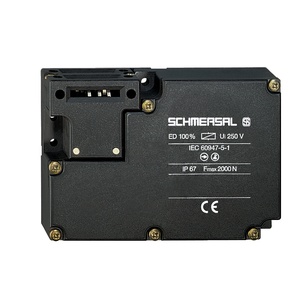

Schmersal AZM 161CC-12/12RIED/TU-024-B1 Solenoid Interlocks
The Schmersal AZM 161CC-12/12RIED/TU-024-B1 Solenoid Interlocks (Item No: 103035469) offers a electromechanical working principle, Cage clampstermination, IP67 degree of protection, 250 VAC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 161CC-12/12RIED/TU-024-B1 |
Schmersal AZM 161CC-12/12RIED/TU-024-B1 Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | High |
| Working principle | electromechanical |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Gross weight | 300 g |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Positive break travel | 10 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | 20 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 3x M6 |
| Termination | Cage clamps |
| Cable section, minimum | 0.25 mm² |
| Cable section, maximum | 1.5 mm² |
| Length of sensor | 30 mm |
| Width of sensor | 130 mm |
| Height of sensor | 90 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 6 A |
| Rated control voltage | 24 VAC/DC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 10 W |
| Switching principle | slow action, positive break NC contact |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Switching element | NO contact, NC contact |
| Power to unlock | Yes |
| Cable entry | 4 x M16 x 1,5 |
Call us for Schmersal Solenoid interlocks AZM 161CC-12/12RIED/TU-024-B1 part no: 103035469 at the best rates. Technical Attributes of AZM 161CC-12/12RIED/TU-024-B1, 103035469 are electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Glass-fibre, reinforced thermoplastic, ensuring a lightweight yet robust construction with a gross weight of 300 g. It features an Cage clamps system, facilitating easy installation. With dimensions of 30 mm in length, 130 mm in width, and 90 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 250 VAC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 4 kV, providing high surge protection. Unlock Exclusive Pricing with a Quote for your requirement of Solenoid interlocks. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
