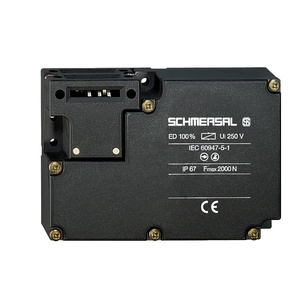

Schmersal AZM 161 Z ST1-AS R Solenoid Interlocks
The Schmersal AZM 161 Z ST1-AS R Solenoid Interlocks (Item No: 101209107) offers a electromechanical working principle, Connector plug M12, 4-pole, (A-coding)termination, IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | AZM 161 Z ST1-AS R |
Schmersal AZM 161 Z ST1-AS R Solenoid Interlocks – Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 460 g |
| Holding force FZhin accordance with EN ISO 14119 | 2,000 N |
| Latching force | 30 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 3x M6 |
| Termination | Connector plug M12, 4-pole, (A-coding) |
| Length of sensor | 30 mm |
| Width of sensor | 130 mm |
| Height of sensor | 90 mm |
| Degree of protection | IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Maximum switching frequency | 1,000 /h |
| Switching element | - |
| Power to unlock | Yes |
| Cable entry | - |
IndMALL Automation Dealing offers Schmersal Solenoid interlocks AZM 161 Z ST1-AS R part no: 101209107 at unbeatable prices. The Main Technical Parameters of AZM 161 Z ST1-AS R, 101209107 feature electromechanical safety switch, designed for durability and reliability in industrial environments. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing, ensuring a lightweight yet robust construction with a gross weight of 460 g. It features an Connector plug M12, 4-pole, (A-coding) system, facilitating easy installation. With dimensions of 30 mm in length, 130 mm in width, and 90 mm in height, it is compact yet highly efficient. The IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Take the First Step with a Quote for your requirement of Solenoid interlocks. Choose us for unparalleled pricing and support over other Dealers & Distributors.
