Schmersal AZ 061 K 3824 Positive-operation Door Contacts
The Schmersal AZ 061 K 3824 Positive-operation Door Contacts (Item No: 153003881) offers a 10,000,000 Operations mechanical life, minimum, IP20 degree of protection, 500 V rated insulation voltage Ui, Opener (NC) switching element. Manufactured by Schmersal under the Schmersal Positive-operation Door Contacts. category, this model belongs to the Schmersal AZ Series.
| Brand | Schmersal |
| Product Type | Positive-operation Door Contact |
| Model Number | AZ 061 K 3824 |
Schmersal AZ 061 K 3824 Positive-operation Door Contacts – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass-fibre reinforced ultramid, self-extinguishing |
| Gross weight | 24 g |
| Suitable for elevators | Yes |
| Number of safety contacts | 1 |
| Mechanical life, minimum | 10,000,000 Operations |
| Termination | Screw terminals M20 x 1.5 |
| Degree of protection | IP20 |
| Ambient temperature | -30 ... +70 °C |
| Rated insulation voltage Ui | 500 V |
| Thermal test current | 4 A |
| Switching element | Opener (NC) |
| Switching principle | Self-cleaning pressure contact |
| Material of the contacts, electrical | Silver-plated Cu rivets |

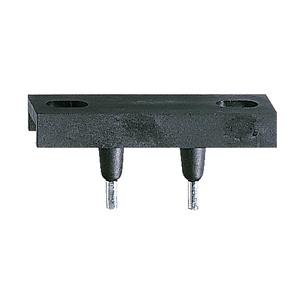

| Scope of delivery | Actuator must be ordered separately. |
| Standards | ASME-A15.5CAN/CSA-B44.1EN 81-20EN 81-50 |
| Material of the housing cover | Glass-fibre reinforced ultramid, self-extinguishing |
| Actuating panels | 1 |
| Actuating stroke | 7 mm |
| Mounting | Round holes |
| Cable entry | 2 x single conductor version with connecting funnel |
| Connection technique - Notes | M4 slotted-head combination screws, similar to DIN 7984, with self-opening clamp plates |
| Width | 50 mm |
| Height | 27 mm |
| Depth | 16 mm |
Ask for the Pricing of Schmersal Positive-operation Door Contacts AZ 061 K 3824 Item No: 153003881 at unbeatable prices. Detailed Specifications of AZ 061 K 3824, 153003881 feature housing is made of Glass-fibre reinforced ultramid, self-extinguishing to enhance fire resistance. Electrical termination is achieved through robust Screw terminals M20 x 1.5 entries, ensuring secure connections in demanding environments. Rated IP20, the device provides excellent protection against dust and water ingress, making it suitable for harsh operating conditions. It operates efficiently in ambient temperatures ranging from -30 ... +70 °C. The control panel features a rated insulation voltage (Ui) of 500 V and supports a thermal test current of up to 4 A. The switching element is an Opener (NC), operating on an Self-cleaning pressure contact principle for precise and stable operation. Electrical contacts are made of high-quality Silver-plated Cu rivets for enhanced conductivity and long service life. Now's the Time to Secure a Quote for your requirement of Positive-operation Door Contacts AZ 061 K 3824. We're committed to offering more favorable pricing and more responsive support than other Traders.
