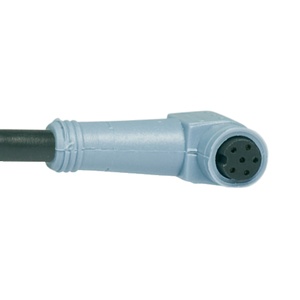

Schmersal A-K6P-M8-R-W-2M-GY-1-X-A-4 Magnetic Safety Sensors
The Schmersal A-K6P-M8-R-W-2M-GY-1-X-A-4 Magnetic Safety Sensors (Item No: 101206013) offers a 5 x Γ-cable bending radius (fixed), PVCmaterial of the cable mantle, IP65IP67IP69 degree of protection, 30 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Magnetic Safety Sensors. category, this model belongs to the Schmersal AK Series.
| Brand | Schmersal |
| Magnetic Safety Sensors | Product Type |
| Model Number | A-K6P-M8-R-W-2M-GY-1-X-A-4 |
Schmersal A-K6P-M8-R-W-2M-GY-1-X-A-4 Magnetic Safety Sensors β Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 65 g |
| Number of poles | 6 |
| Number of cable wires | 6 |
| Length of cable | 2 m |
| Wire cross-section | 0.14 mm2 |
| Cable diameter | 4.9 mm |
| Bending radius (fixed) | 5 x Γ-cable |
| Bending radius (repeated) | 10 x Γ-cable |
| Colour of the Cable mantle | Grey |
| Material of the Cable mantle | PVC |
| Connector typ | Female connector, M8 |
| Design | angled |
| Connector latching | Latching interlocking |
| Material of the gland | Plastic, TPU |
| Material of the handle | Plastic, TPU |
| Colour of the handle | Black |
| Degree of protection | IP65IP67IP69 |
| Ambient temperature (Connector) | -30 ... +90 Β°C |
| Ambient temperature (fixed) | -40 ... +80 Β°C |
| Thermal test current | 1.5 A |
| Rated operating voltage | 30 VDC |
| Operating current | 1,500 mA |
