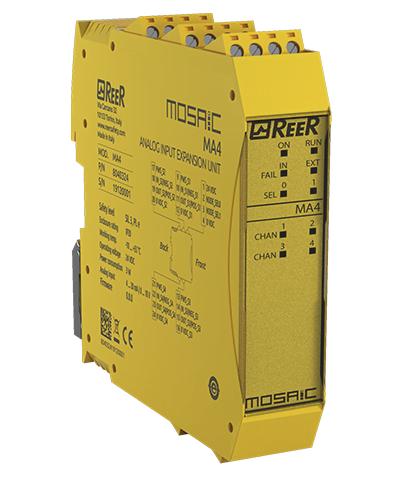

Reer MOSAIC MA4 Safety Controller
The Reer MOSAIC MA4 Safety Controller offers PL e safety level, 4 analogue inputs safety input, Removable terminal blocks. screw contacts connections. Manufactured by Reer Safety under the Reer Safety Controller category, this model belongs to the MOSAIC Series.
| Brand | Reer Safety |
| Product Type | Safety Controller |
| Model Number | MOSAIC MA4 |
Reer MOSAIC MA4 Safety Controller – Technical Specifications
| Specification | Value |
|---|---|
| Safety level | PL e |
| Safety inputs | 4 analogue inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 10 ... 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the analog inputs condition |
| Connections | Removable terminal blocks. screw contacts |
| MTTFD (ISO13849) years | 30 ... 100 |
| PFHD (IEC 61508) | 1.53E-08 |
| Storage temperature (°C) | -20 ... +85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
| Product class | C |
| Custom tariff | 85371091 |
| Power supply (VDC) | 24 ± 20% |
| Dimensions HxWxD (mm) | 108 x 22.5 x 114.5 |
| Degree of protection | IP20 for housing - IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 199.4 |
IndMALL Offers Reer Safety 4 Analogue Input Safety Controllers MOSAIC MA4 part no: 1100025 at economical Choices. Product Tech Specs of MOSAIC MA4, 1100025 include provide top-tier protection with PL e safety level, featuring 4 analogue inputs, SIL 3 - SILCL 3 - PL e - Cat. 4 certification. Operating efficiently between - 10 ... 55, these controllers offer clear LEDs indication for operating status and fault diagnosis. LED indication of the analog inputs condition. Equipped with , they ensure reliable safety outputs. The Removable terminal blocks. screw contacts, coupled and test outputs, add to their robustness. These controllers are IP20 for housing - IP2X for terminal blockprotected enclosures, designed for 35 mm DIN rail fastening according to EN 50022-35 standard. With a compact design of 108 x 22.5 x 114.5 and a gross weight of 199.4 g, they offer reliable performance for industrial applications. Now's the Time to Secure a Quote for your requirement of Reer Safety 4 Analogue Input Safety Controllers. Trust in our superior pricing and more dedicated support over other Distributors.
