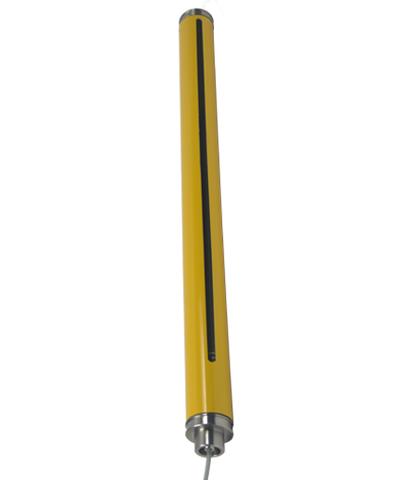

Reer EOS4 1203 AH EX Safety Light Curtain
The Reer EOS4 1203 AH EX Safety Light Curtain offers Type 4 - PL e safety level, 1210 mm protected height, 61 No.of beams, Cable output. Manufactured by Reer Safety under the Reer Safety Light Curtain category, this model belongs to the ES04 Series.
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 1210 |
| Number of beams | 61 |
Reer EOS4 1203 AH EX Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 1210 |
| Resolution (mm) | 30 |
| Controlled Height (mm) | 1200 |
| Max. Range (m) | 17 |
| Restart | Automatic |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating Temperature (°C) | - 10 ... 55 |
| Response Time (ms) | 15.5 |
| Number of Beams | 61 |
| Max. Length of the Connection Cables (m) | 10 |
| Signalling | LEDs for light curtain's status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | Cable output |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 1.54E-08 |
| Safety Outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety Functions | With external module |
| Detection | Hand |
| Protective Enclosures | ATEX zone 2. 22 |
| Packaging Dimensions HxLxW (mm) | 145 x 1520 x 200 |
| Product Class | C |
| Power Supply (VDC) | 24 ± 20% |
| Overall Height (mm) | 1380 |
| Degree of Protection | IP65 |
| Fastening | Set of 4 ring brackets (included) |
| Special versions | ATEX |
| Operating Range (m) | 8 or 17 selectable |
| Diameter (mm) | 56 |
| Gross Weight (g) | 9592.06 |
Please speak to our Technical Engineer for Reer 1380 mm Height Safety Light Curtains EOS4 1203 AH EX part no: 1010257 at attractive prices. Technical Specs Summary of EOS4 1203 AH EX, 1010257 includes 1210 protected height and a 30 resolution, ensuring precise detection. It operates at a 15.5 response time with a 17 range. The Emitter / Receiver pair meets Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 standards, with an operating temperature range of - 10 ... 55. It includes LEDs for light curtain's status and diagnostics and uses Cable output. The device is IP65 rated for durability, with an overall length of 10. It has 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity, and ensuring precise Hand, detection. With IP65, protection and flexible mounting options, it's designed for versatile use in industrial applications. Match Your Needs with a Quote for your requirement of Reer 1380 mm Height Safety Light Curtains. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
