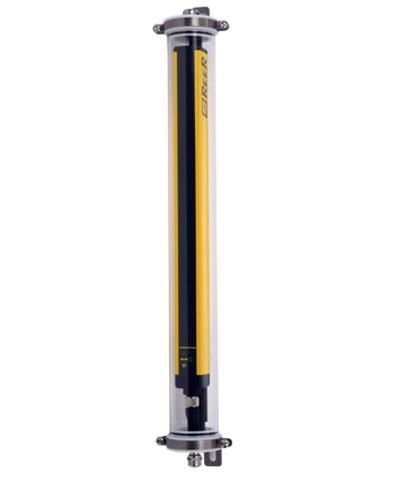

Reer EOS2 1653 X WTHF Safety Light Curtain
The Reer EOS2 1653 X WTHF Safety Light Curtain offers Type 2 - PL c safety level, 1660 mm protected height, 83 No.of beams, Cable output. Manufactured by Reer Safety under the Reer Safety Light Curtain category, this model belongs to the ES02 Series.
| Safety level | Type 2 - PL c |
| Protected height (mm) | 1660 |
| Number of Beams | 83 |
Reer EOS2 1653 X WTHF Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Safety level | Type 2 - PL c |
| Protected height (mm) | 1660 |
| Resolution (mm) | 30 |
| Controlled height (mm) | 1650 |
| Max. range (m) | 10 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 2 - SIL 1 - SILCL 1 - PL c - Cat. 2 |
| Operating temperature (°C) | - 25 ... 50 |
| Response time (ms) | 21 |
| Number of beams | 83 |
| Max. length of the connection cables (m) | 100 |
| Signalling | LEDs for light curtain's status and diagnostics |
| Safety output type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | Cable output |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 8.35E-08 |
| Safety outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Hand |
| Protective enclosures | Food industry IP69K |
| Packaging dimensions HxLxW (mm) | 145 x 1960 x 200 |
| Product class | C |
| Custom tariff | 85365019 |
| Power supply (VDC) | 24 ± 20% |
| Overall height (mm) | 1837 |
| Degree of protection | IP69K |
| Fastening | Set of 4 ring brackets (included) |
| Gross weight (g) | 8783.49 |
| Special versions | Food and beverage. Heated. Watertight enclosure |
| Materials suitable for food applications | Yes |
| Diameter (mm) | 56 |
| Max. water pressure (bar) | 80 . . . 100 |
Mail Us for your needs in Reer 1837 mm Height Safety Light Curtains EOS2 1653 X WTHF part no: 1120052 with budget-friendly prices. The Main Technical Parameters of EOS2 1653 X WTHF, 1120052 include Reer Safety Light Curtains with a safety level of Type 2 - PL c, providing robust protection in industrial environments. The curtains feature a protected height of 1210 and a resolution of 30, with a controlled height of 1650 and a maximum range of 10. Operating within a temperature range of - 25 ... 50, these curtains have a response time of 21 and utilize an emitter/receiver system. Equipped with 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity and Cable output, the system ensures reliable performance. The curtains include LEDs for light curtain's status and diagnostics, and the degree of protection is rated at IP69K .Customize Your Experience with a Quote for your requirement of Reer 1837 mm Height Safety Light Curtains. Experience the difference with our competitive pricing and superior support over other Suppliers.
