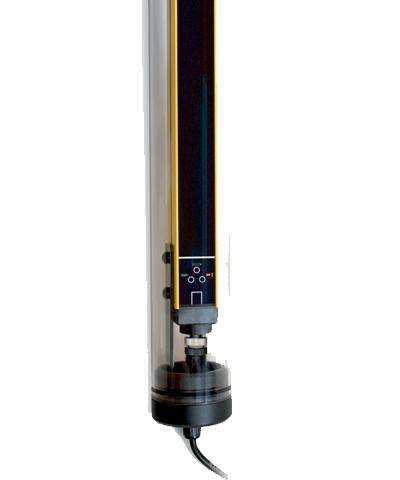

Reer ADMIRAL AX 4B LR WTH Safety Light Curtain
The Reer ADMIRAL AX 4B LR WTH Safety Light Curtain offers Type 4 - PL e safety level, 900 mm protected height, 4 No.of beams, and-. Manufactured by Reer Safety under the Reer Safety Light Curtain category, this model belongs to the Admiral Series.
| Brand | Reer Safety |
| Product Type | Safety Light Curtain |
| Model Number | ADMIRAL AX 4B LR WTH |
Reer ADMIRAL AX 4B LR WTH Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Safety level | Type 4 - PL e |
| Protected height (mm) | 900 |
| Resolution (mm) | Multi-beams |
| Max. range (m) | 50 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 25 ... 50 |
| Response time (ms) | 6 |
| Number of beams | 4 |
| Max. length of the connection cables (m) | 100 |
| Signalling | 7 segment display and LEDs for light curtain's status and diagnostics |
| Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | - |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 9.32E-09 |
| Safety outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Access control |
| Protective enclosures | Harsh working environments |
| Packaging dimensions HxLxW (mm) | 145 x 1470 x 200 |
| Product class | C |
| Custom tariff | 85365019 |
| Power supply (VDC) | 24 ± 20% |
| Overall height (mm) | 1241 |
| Cross section dimensions (mm) | - |
| Degree of protection | IP67 |
| Fastening Gross weight (g) | Set of 4 WFB ring brackets (included) |
| Gross weight (g) | - |
| Operating Range (m) | - |
| Connector | - |
| Blanking function | - |
Please speak to our Technical Engineer for Reer 4 Beams Safety Light Curtain ADMIRAL AX 4B LR WTH part no: 1139605 at attractive prices. Technical Specs Summary of ADMIRAL AX 4B LR WTH, 1139605 includes Type 4 - PL e safety level with a protected height of 900 and a resolution of Multi-beams. It utilizes 4 beams for accurate finger detection and is housed in protective enclosures for industrial applications. The compact packaging dimensions are 145 x 1470 x 200, making it suitable for various environments. The sensor operates on a 24 ± 20% power supply with, ensuring reliable performance. The overall height of the unit is 1241. Designed with an IP67 degree of protection. Match Your Needs with a Quote for your requirement of Reer 4 Beams Safety Light Curtain. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
