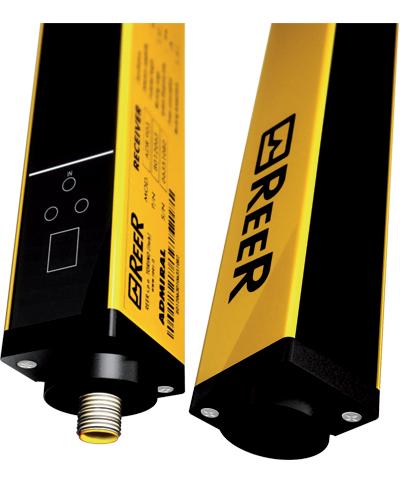

Reer ADMIRAL AX 1653 Safety Light Curtain
The Reer ADMIRAL AX 1653 Safety Light Curtain offers Type 4 - PL e safety level, 1660 mm protected height, 88 No.of beams. Manufactured by Reer Safety under the Reer Safety Light Curtain category, this model belongs to the Admiral Series.
| Brand | Reer Safety |
| Product Type | Safety Light Curtain |
| Model Number | ADMIRAL AX 1653 |
Reer ADMIRAL AX 1653 Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Safety level | Type 4 - PL e |
| Protected height (mm) | 1660 |
| Resolution (mm) | 30 |
| Max. range (m) | 18 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | 0 ... 55 |
| Response time (ms) | 15 |
| Number of beams | 88 |
| Max. length of the connection cables (m) | 100 |
| Signalling | 7 segment display and LEDs for light curtain's status and diagnostics |
| Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | M12 5-pole connector (emitter). M12 8-pole connector (receiver) |
| MTTFD (ISO13849) years | 85.55 |
| PFHD (IEC 61508) | 1.88E-08 |
| Safety outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Hand |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 1830 x 200 |
| Product class | C |
| Custom tariff | 85365019 |
| Power supply (VDC) | 24 ± 20% |
| Overall height (mm) | 1761 |
| Cross section dimensions (mm) | 35 x 45 |
| Degree of protection | IP65 |
| Fastening | Back slot. side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional) |
| Gross weight (g) | 8108.86 |
| Operating Range (m) | - |
| Blanking function | - |
Please speak to our Technical Engineer for Reer Admiral With Receiver Function ADMIRAL AX 1653 part no: 1334210 at attractive prices. Technical Specs Summary of ADMIRAL AX 1653, 1334210 includes Type 4 - PL e safety level with a protected height of 1660 and a resolution of 30. It utilizes 88 beams for accurate finger detection and is housed in protective enclosures for industrial applications. The compact packaging dimensions are 145 x 1830 x 200, making it suitable for various environments. The sensor operates on a 24 ± 20% power supply with, ensuring reliable performance. The overall height of the unit is 1761, with cross-section dimensions of 35 x 45 mm. Designed with an IP65 degree of protection. Match Your Needs with a Quote for your requirement of Reer Admiral With Receiver Function. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
