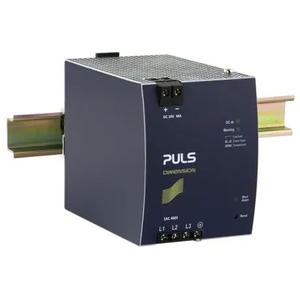

Home Puls Power Supply XT40.242 Puls XT40.242 Power Supply The Puls XT40.242 Power Supply offers 24 Vdc, DIN rail Mounting Method, Screw terminals Connection Method, 40 A at 24 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
Brand Puls Product Type Power Supply Model Number XT40.242
Puls XT40.242 Power Supply – Technical Specifications Specification Value AC Input voltage AC 480 V (± 15 %) Harmonic correction active Power factor 0.93 Input inrush current limitation active Input inrush current 2 A External input fuse recommendation B-6 A / C-3 A Nominal voltage 24 Vdc Adjustment range 24 V Output current range 40 A Output current 40 A at 24 V Output power 960 W Derating 24 W/°C for >+60 °C Ripple and noise voltage max. 1500 mVpp Dimensions (WxHxD) 96 mm x 124 mm x 159 mm Weight per unit (excl. packaging) 1400 g Mounting method DIN rail Operating temp. range -25 °C to 70 °C Connection method Screw terminals Efficiency, typ. 95.5 % Power losses, typ. 45.2 W
