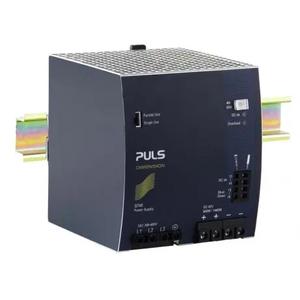

Home Puls Power Supply TP960.484 Puls TP960.484 Power Supply The Puls TP960.484 Power Supply offers 48 Vdc, DIN rail Mounting Method, Spring clamps Connection Method, 20.6 A at 56 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
Brand Puls Product Type Power Supply Model Number TP960.484
Puls TP960.484 Power Supply – Technical Specifications Specification Value AC Input voltage AC 380 - 500 V (-15 %/+10 %) Harmonic correction - Power factor 0.91 Input inrush current limitation active Input inrush current - External input fuse recommendation B-16 A / C-16 A Nominal voltage 48 Vdc Adjustment range 48 - 56 V Output current range 24 - 20.6 A Output current 20.6 A at 56 V Output power 960 W Derating 12.8 W/°C for +45 to +60 °C Ripple and noise voltage max. 50 mVpp Dimensions (WxHxD) 79 mm x 124 mm x 136 mm Weight per unit (excl. packaging) 1100 g Mounting method DIN rail Operating temp. range -40 °C to 70 °C Connection method Spring clamps Efficiency, typ. 97 % Power losses, typ. 30 W Housing material Metal and plastic
