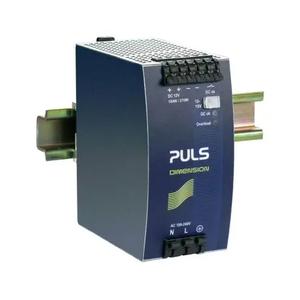

Puls QS10.121 Power Supply
The Puls QS10.121 Power Supply offers 12 Vdc, DIN rail Mounting Method, Spring clamps Connection Method, 13.5 A at 15 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | QS10.121 |
Puls QS10.121 Power Supply – Technical Specifications
| Specification | Value |
|---|---|
| AC Input voltage | AC 100 - 240 V (± 15 %) |
| DC Input voltage | DC 110 V - 150 V (-20 %/+25 %) |
| Harmonic correction | active |
| Power factor | 0.92 |
| Input inrush current limitation | active |
| Input inrush current | 4 A / 7 A |
| External input fuse recommendation | B-6 A / C-4 A |
| Nominal voltage | 12 Vdc |
| Adjustment range | 12 - 15 V |
| Output current range | 15 - 13.5 A |
| Output current | 13.5 A at 15 V |
| Output power | 180 W |
| Derating | 5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
| Dimensions (WxHxD) | 60 mm x 124 mm x 117 mm |
| Weight per unit (excl. packaging) | 930 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| Efficiency, typ. | 91.8 % |
| Power losses, typ. | 16,1 W |
