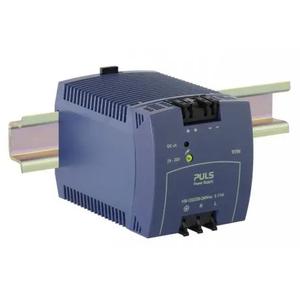

Home Puls Power Supply ML95.100 Puls ML95.100 Power Supply The Puls ML95.100 Power Supply offers 24 Vdc, DIN rail Mounting Method, Spring clamps Connection Method, 3.4 A at 28 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
Brand Puls Product Type Power Supply Model Number ML95.100
Puls ML95.100 Power Supply โ Technical Specifications Specification Value AC Input voltage AC 100 - 120 / 220 - 240 V (-15 %/+10 %) DC Input voltage DC 290 V (-25 %/+30 %) Harmonic correction - Power factor 0.55 Input inrush current limitation NTC Input inrush current 22 A / 37 A External input fuse recommendation B-10 A / C-6 A Nominal voltage 24 Vdc Adjustment range 24 - 28 V Output current range 4 - 3.4 A Output current 3.4 A at 28 V Output power 95 W Derating 2 W/ยฐC for >+60 ยฐC Ripple and noise voltage max. 50 mVpp Dimensions (WxHxD) 73 mm x 75 mm x 103 mm Weight per unit (excl. packaging) 360 g Mounting method DIN rail Operating temp. range - Connection method Spring clamps Efficiency, typ. 90 % Power losses, typ. 10.5 W
