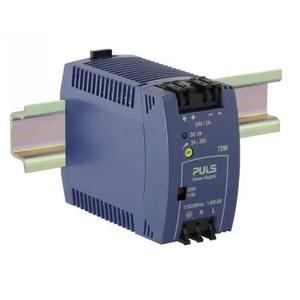

Puls ML70.100 Power Supply
The Puls ML70.100 Power Supply offers 24 Vdc, DIN rail Mounting Method, Spring clamps Connection Method, 2.6 A at 28 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | ML70.100 |
Puls ML70.100 Power Supply β Technical Specifications
| Specification | Value |
|---|---|
| AC Input voltage | AC 100 - 120 / 220 - 240 V (-15 %/+10 %) |
| DC Input voltage | DC 290 V (-25 %/+30 %) |
| Harmonic correction | - |
| Power factor | 0.54 |
| Input inrush current limitation | NTC |
| Input inrush current | 26 A / 30 A |
| External input fuse recommendation | B-10 A / C-6 A |
| Nominal voltage | 24 Vdc |
| Adjustment range | 24 - 28 V |
| Output current range | 3 - 2.6 A |
| Output current | 2.6 A at 28 V |
| Output power | 72 W |
| Derating | 1.8 W/Β°C for >+60 Β°C |
| Ripple and noise voltage max. | 50 mVpp |
| Dimensions (WxHxD) | 45 mm x 75 mm x 91 mm |
| Weight per unit (excl. packaging) | 260 g |
| Mounting method | DIN rail |
| Operating temp. range | - |
| Connection method | Spring clamps |
| Efficiency, typ. | 89 % |
| Power losses, typ. | 8.7 W |
