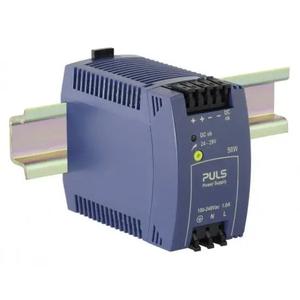

Puls ML50.101 Power Supply
The Puls ML50.101 Power Supply offers 24 Vdc, DIN rail Mounting Method, Spring clamps Connection Method, 1.8 A at 28 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | ML50.101 |
Puls ML50.101 Power Supply β Technical Specifications
| Specification | Value |
|---|---|
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
| DC Input voltage | DC 110 V - 300 V (-20 %/+25 %) |
| Harmonic correction | - |
| Power factor | 0,52 |
| Input inrush current limitation | NTC |
| Input inrush current | 17 A / 35 A |
| External input fuse recommendation | B-10 A / C-6 A |
| Nominal voltage | 24 Vdc |
| Adjustment range | 24 - 28 V |
| Output current range | 2.1 - 1.8 A |
| Output current | 1.8 A at 28 V |
| Output power | 50 W |
| Derating | 1.3 W/Β°C for >+60 Β°C |
| Ripple and noise voltage max. | 50 mVpp |
| Dimensions (WxHxD) | 45 mm x 75 mm x 91 mm |
| Weight per unit (excl. packaging) | 240 g |
| Mounting method | DIN rail |
| Operating temp. range | - |
| Connection method | Spring clamps |
| Efficiency, typ. | 88.5 % |
| Power losses, typ. | 6.8 W |
