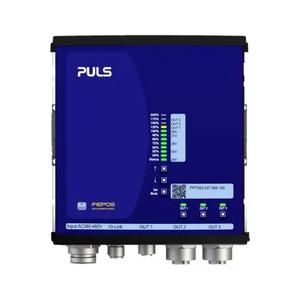

Home Puls Power Supply FPT500.247-064-102 Puls FPT500.247-064-102 Power Supply The Puls FPT500.247-064-102 Power Supply offers 24 Vdc, DIN rail Mounting Method, Screw terminals Connection Method, 21.4 A at 28 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
Brand Puls Product Type Power Supply Model Number FPT500.247-064-102
Puls FPT500.247-064-102 Power Supply – Technical Specifications Specification Value AC Input voltage AC 380 - 480 V (± 15 %) Power factor 0.95 Input inrush current limitation active Input inrush current 1.9 A / 1.8 A External input fuse recommendation B-6 A / C-6 A Nominal voltage 24 Vdc Adjustment range 24 - 28 V Output current range 25 - 21.4 A Output current 21.4 A at 28 V Output power 600 W Derating 10 W/°C for +45 to +70 °C Ripple and noise voltage max. 100 mVpp Dimensions (WxHxD) 181 mm x 183 mm x 59 mm Weight per unit (excl. packaging) 1200 g Mounting method DIN rail Operating temp. range -25 °C to 70 °C Connection method Screw terminals Efficiency, typ. 95.6 % Power losses, typ. 23 W Housing material Metal
