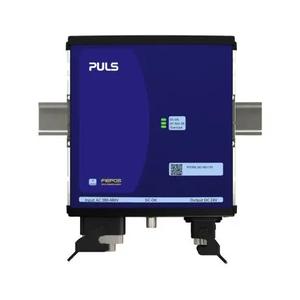

Puls FPT300.242-002-101 Power Supply
The Puls FPT300.242-002-101 Power Supply offers 24 Vdc, , Input: HanQ4/2 | Output: HanQ4/0 Connection Method, 15 A at 24 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | FPT300.242-002-101 |
Puls FPT300.242-002-101 Power Supply – Technical Specifications
| Specification | Value |
|---|---|
| AC Input voltage | AC 380 - 480 V (± 15 %) |
| Power factor | 0.9 |
| Input inrush current limitation | active |
| Input inrush current | 1.5 A |
| External input fuse recommendation | B-6 A / C-6 A |
| Nominal voltage | 24 Vdc |
| Adjustment range | 24 - 24 V |
| Output current range | 15 - 15 A |
| Output current | 15 A at 24 V |
| Output power | 360 W |
| Derating | 10 W/°C for +55 to +70 °C |
| Ripple and noise voltage max. | 100 mVpp |
| Dimensions (WxHxD) | 182 mm x 183 mm x 59 mm |
| Weight per unit (excl. packaging) | 1200 g |
| Mounting method | - |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Input: HanQ4/2 | Output: HanQ4/0 |
| Efficiency, typ. | 95 % |
| Power losses, typ. | 15.8 W |
