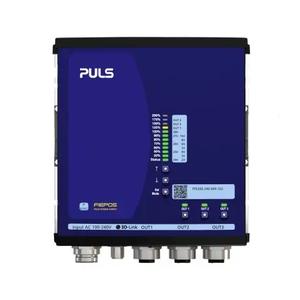

Puls FPS300.246-049-102 Power Supply
The Puls FPS300.246-049-102 Power Supply offers 24 Vdc, - Mounting Method, Input: 7/8" 3pin | Output: 7/8" 4pin Connection Method, 12.9 A at 28 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | FPS300.246-049-102 |
Puls FPS300.246-049-102 Power Supply β Technical Specifications
| Specification | Value |
|---|---|
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
| DC Input voltage | DC 110 V - 300 V (Β± 20 %) |
| Power factor | 0.97 |
| Input inrush current limitation | active |
| Input inrush current | 2.6 A / 6 A |
| External input fuse recommendation | B-6 A / C-6 A |
| Nominal voltage | 24 Vdc |
| Adjustment range | 24 - 28 V |
| Output current range | 15 - 12.9 A |
| Output current | 12.9 A at 28 V |
| Output power | 360 W |
| Derating | 6 W/Β°C for +45 to +55 Β°C |
| Dimensions (WxHxD) | 181 mm x 183 mm x 59 mm |
| Weight per unit (excl. packaging) | 1200 g |
| Mounting method | - |
| Operating temp. range | -25 Β°C to 70 Β°C |
| Connection method | Input: 7/8" 3pin | Output: 7/8" 4pin |
| Efficiency, typ. | 95.7 % |
| Power losses, typ. | 13.5 W |
