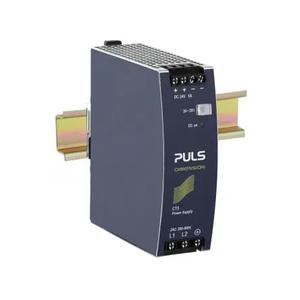

Puls CT5.241: 3 Phase Power Supplies
Technical Specifications of Puls 3 Phase Power Supplies CT5.241:
| Spec | Value |
|---|
| Brand | Puls |
| Product Type | Power Supply |
| Product | CT5.241 |
Puls 3 Phase Power Supplies CT5.241 Technical Specifications
| Specification | Value |
|---|
| AC Input voltage | AC 380 - 480 V (-15 %/+20 %) |
| Harmonic correction | PFC |
| Power factor | 0.45 |
| Input inrush current limitation | active |
| Input inrush current | 4 A / 4 A |
| External input fuse recommendation | B-6 A / C-3 A |
| Nominal voltage | 24 Vdc |
| Adjustment range | 24 - 28 V |
| Output current range | 5 - 4.3 A |
| Output current | 4.3 A at 28 V |
| Output power | 120 W |
| Derating | 3 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
| Dimensions (WxHxD) | 40 mm x 124 mm x 117 mm |
| Weight per unit (excl. packaging) | 500 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 90.4 % |
| Power losses, typ. | 12.7 W |
