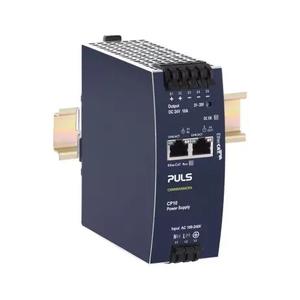

Puls CP10.241-ETC Power Supply
The Puls CP10.241-ETC Power Supply offers 24 Vdc, DIN rail Mounting Method, Spring clamps Connection Method, 8.6 A at 28 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | CP10.241-ETC |
Puls CP10.241-ETC Power Supply – Technical Specifications
| Specification | Value |
|---|---|
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
| DC Input voltage | DC 110 V - 300 V (± 20 %) |
| Harmonic correction | active |
| Power factor | 0,97 |
| Input inrush current limitation | active |
| Input inrush current | 6 A / 9 A |
| External input fuse recommendation | B-6 A / C-6 A |
| Nominal voltage | 24 Vdc |
| Adjustment range | 24 - 28 V |
| Output current range | 10 - 8.6 A |
| Output current | 8.6 A at 28 V |
| Output power | 240 W |
| Derating | 6 W/°C for >+60 °C |
| Dimensions (WxHxD) | 48 mm x 124 mm x 127 mm |
| Weight per unit (excl. packaging) | 660 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| Efficiency, typ. | 94.8 % |
| Power losses, typ. | 13.3 W |
