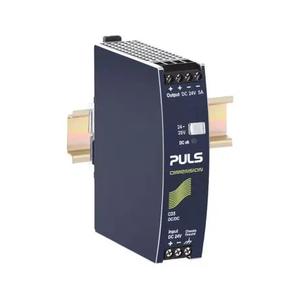

CD5.241 - Puls 24VDC Power Supply
The CD5.241 is a Puls 24VDC Power Supply delivering 120W output, 5A current, and isolated DC/DC conversion for industrial applications. This Puls power supply belongs to the DC DC Converter series and supports 18–32.4V DC input, 24–28V adjustable output, DIN rail mounting, and screw terminal connections for control panels.
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | CD5.241 |
Puls 24VDC Power Supply CD5.241 – Technical Specifications
| Specification | Value |
|---|---|
| DC Input voltage | DC 24 V (-25 %/+35 %) |
| Harmonic correction | - |
| Power factor | - |
| Input inrush current limitation | - |
| Input inrush current | - |
| External input fuse recommendation | - |
| Nominal voltage | 24 Vdc |
| Adjustment range | 24 - 28 V |
| Output current range | 5 - 4.3 A |
| Output current | 4.3 A at 28 V |
| Output power | 120 W |
| Derating | 3 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
| Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
| Weight per unit (excl. packaging) | 425 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 90.3 % |
| Power losses, typ. | 12.9 W 12.9 W |
CD5.241 Puls 24VDC Power Supply is a DIN rail DC/DC converter designed for regulated power conversion in industrial automation systems. This Puls CD5.241 power supply provides 24V DC output at 5A current with a 120W power rating and up to 90.3% efficiency. It operates from a wide 18–32.4V DC input range and belongs to the Puls DC DC Converter series used in automation panels.
In industrial automation, the CD5.241 Puls 24VDC Power Supply is used in conveyors, packaging machines, assembly lines, and control cabinets. It ensures stable voltage conversion between DC power levels for PLCs, sensors, relays, and communication modules. Galvanic isolation, defined output regulation, and controlled startup behavior support reliable operation in distributed DC power architectures.
The CD5.241 from Puls is selected where predictable DC/DC conversion and compact DIN rail installation are required. With regulated 24V DC output, defined current capacity, and integrated protection functions, this Puls 24VDC Power Supply supports long-term industrial use. Engineers rely on the CD5.241 Puls power supply for consistent performance in automation environments.
