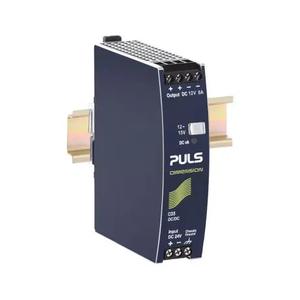

Puls CD5.121 Power Supply
The Puls CD5.121 Power Supply offers 12 Vdc, DIN rail Mounting Method, Screw terminals Connection Method, 6.4 A at 15 V output current. Manufactured by Puls under the Puls Power Supply category, this model belongs to the 3-phase system
| Brand | Puls |
| Product Type | Power Supply |
| Model Number | CD5.121 |
Puls CD5.121 Power Supply โ Technical Specifications
| Specification | Value |
|---|---|
| DC Input voltage | DC 24 V (-25 %/+35 %) |
| Harmonic correction | - |
| Power factor | - |
| Input inrush current limitation | - |
| Input inrush current | - |
| External input fuse recommendation | - |
| Nominal voltage | 12 Vdc |
| Adjustment range | 12 - 15 V |
| Output current range | 8 - 6.4 A |
| Output current | 6.4 A at 15 V |
| Output power | 96 W |
| Derating | 2.5 W/ยฐC for >+60 ยฐC |
| Ripple and noise voltage max. | 75 mVpp |
| Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
| Weight per unit (excl. packaging) | 425 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 ยฐC to 70 ยฐC |
| Connection method | Screw terminals |
| Efficiency, typ. | 88.2 % |
| Power losses, typ. | 12.8 W |
