Pizzato Limit Switch: Position & Micro Limit Switches

IndMALL Automation offers a range of Pizzato Limit Switch and Position Switches, designed for diverse industrial applications. The FR Series offers technopolymer housing and IP67 protection, enduring -25°C to +80°C. FA Series switches feature metal housing and flexible cable options for various environments. FK and FD Series provide multiple contact blocks and actuators for versatility.

FX Series switches have polymer housing and numerous actuator choices, suitable for demanding tasks. FM and FC Series, with metal housing, ensure high endurance in tough conditions. Pizzato’s micro and door switches, crucial for precision in automation, enhance safety and efficiency. IndMALL offers a Pizzato limit switch price that is better than Pizzato limit switch distributors.

Pizzato Limit Switch -FR Series

Pizzato FR Series Limit Switches are:

Housing: Glass fiber reinforced technopolymer, IP67 protection.
Temperature Range: -25°C to +80°C, -40°C to +80°C with T6 option.
Actuation Frequency: Up to 3600 cycles/hour.
Mechanical Endurance: 20 million cycles.
Mounting: Flexible positioning.
Installation: Details on page 231 of the manual.

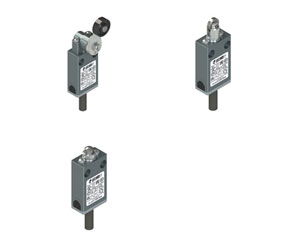

Pizzato Limit Switches -FA Series

Pizzato FA Series Limit switches are:

Metal housing with IP67 protection.
Halogen-free polyurethane cable, 2m standard, other lengths available.
Operates between -20°C to +60°C.
Flexible mounting, B10D safety parameter for NC contacts.
Contact options: 1NO+1NC, snap, or slow action.
Actuators include plungers and levers.
Cable lengths range from 1m to 10m, customizable.

Pizzato Position Switch- FK Series

Housing: Technopolymer, shock-proof, double insulation; Protection: IP67.
Conduit Entry: M16x1.5.
Contact Blocks: 3 types.
Actuators: 47 varieties, including stainless steel.
Contacts: Gold-plated silver available.
Temperature Range: -25°C to +80°C, -40°C to +80°C (T6).
Actuation Frequency: 3600 cycles/hour.

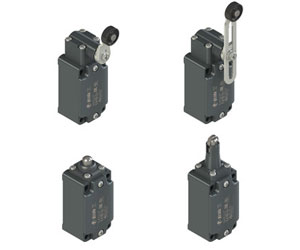

Pizzato Position Switches- FD Series

Housing: Metal, powder-coated.
Protection: IP67; Conduit Entry: M20x1.5.
Contact Blocks: 17 types available.
Actuators: 29 options, including M12 connector versions.
Temperature Range: -25°C to +80°C, -40°C to +80°C (T6).
Actuation Frequency: 3600 cycles/hour; Endurance: 20 million cycles.
Safety: B10D for NC contacts, Type 1 mechanical interlock.

Pizzato Switches- FX Series

Housing: Polymer, glass-reinforced, IP67 protection.
Contact Blocks: 17 available.
Actuators: 43 types, including stainless steel and M12 connector versions.
Electrical Ratings: AC15 up to 500 V, DC13 up to 250 V.
Thermal Current: 4 A, Insulation Voltage: 250 Vac, 300 Vdc.
Ambient Temperature: -25°C to +80°C (option for -40°C to +80°C).

Limit Switch Pizzato– FM Series

Housing: Metal, powder-coated, IP67, M20x1.5 entry.
Temperature: -20°C to +60°C.
Frequency: 3600 cycles/hour.
Endurance: 10 million cycles; Mounting: Any position.
Actuators: Various types including plunger and lever.
Safety: EN ISO 14119 compliant, type 1 interlock.

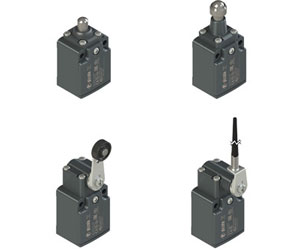

Pizzato Switch– FC Series

Housing: Metal with epoxy powder coating, IP67, one conduit entry.
Temperature: -25°C to +80°C, option for -40°C to +80°C.
Frequency: 3600 cycles/hour.
Endurance: 20 million cycles; Mounting: Any position.
Contact Blocks: 3 types, including snap and slow action.
Actuators: 26 types, including plungers and levers.

Pizzato Micro Switch- MK Series

Pizzato Micro Switch MK Series are:

Housing: Technopolymer, glass fiber reinforced, self-extinguishing, shock-proof.
Protection Degrees: IP20, IP40, IP65 (EN 60529).
Terminal Types: Four available options.
Features: Positive opening, gold-plated silver contacts.
Ambient Temperature: -25°C to +85°C (standard), -40°C to +85°C (T6 option).
Actuation Frequency: Max 3600 cycles/hour.

Product List:

Model No	Actuator	Terminal Type	Housing	Contact Block
MK V11D15	Roller Plunger	Screws with self-lifting plate	Technopolymer	1NO+1NC changeover
MK V11D30	Lever Plunger	Screws with self-lifting plate	Technopolymer	1NO+1NC changeover

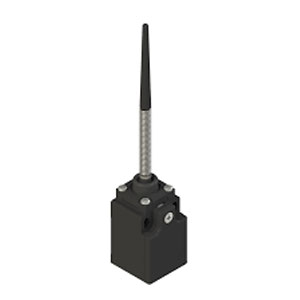

FK 320-M1	Short Plunger	Screws	Technopolymer	1NO+1NC snap action (B3)

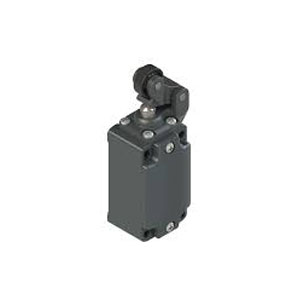

FD-502	Roller Lever	Screws	Metal housing	1NO+1NC snap action (B5)

Frequently Asked Questions

Is a Position Switch a Limit Switch?

A position switch is indeed a type of limit switch. It is designed to detect the presence or absence of an object. When an object reaches a specific location, the position switch activates. This makes it essential for monitoring and controlling mechanical movements in various applications.

Which Type of Switch is Commonly used as a Limit Switch?

Mechanical switches are commonly used as limit switches in various applications. They operate by physical contact with an object. When the set limit is reached, the switch activates, controlling machinery or signaling a system. Their reliability and simplicity make them a popular choice in industrial settings.

How are Limit Switches Connected?

Limit switches are typically connected in a control circuit. They are wired to machinery or systems to monitor movement. When an object hits the switch’s actuator, the circuit is completed or broken. This action triggers a response, like stopping machinery or signaling a system change. Their installation is straightforward and adaptable to various settings.

What is a Positioning Switch?

A positioning switch, often known as a position switch, is a device that detects the presence or position of an object. It activates when an object reaches a specific location, sending a signal to control systems. Commonly used in industrial settings, these switches ensure precision in machinery operations. They are vital for safety and process control in automated environments.

IndMALL is the best place for all ranges of Pizzato micro limit switch types. Get the best prices for Pizzato Limit Switch.
