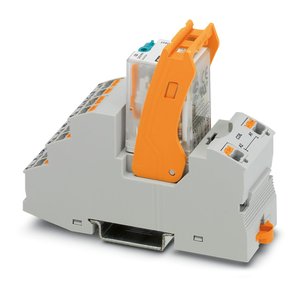

RIF-2-RPT-LDP-24DC/4X21 AU: 2908332 -Phoenix 4 Changeover Relay Module
Technical Specifications of Phoenix 4 Changeover Relay Module RIF-2-RPT-LDP-24DC/4X21 AU 2908332:
| Spec | Value |
|---|---|
| Product type | Relay Module |
| Nominal input voltage UN | 24 V DC |
| Connection method | Push-in connection |
| Mounting type | DIN rail mounting |
🛠️ Get Quotes Instantly from Phoenix Vendors
Phoenix 4 Changeover Relay Module RIF-2-RPT-LDP-24DC/4X21 AU, 2908332 Technical Specifications:
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | RIFLINE complete |
| Application | Universal |
| Mechanical service life | approx. 2x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 1.01 W |
| Test voltage (Winding/contact) | 2.5 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | 2.5 kV |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 30 V DC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 42 mA |
| Typical response time | 13 ms |
| Typical release time | 14 ms |
| Protective circuit | Freewheeling diode |
| Operating voltage display | - |
| Contact switching type | 4 changeover contacts |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 6 A |
| Maximum inrush current | 16 A (20 ms, N/O contacts) |
| Min. switching current | 5 mA (at 24 V) |
| Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
| Switching capacity | 2 A (at 24 V, DC13) |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 16 (solid) |
| Tightening torque | - |
| Width | 31 mm |
| Height | 96 mm |
| depth | 75 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 (Housing) |
| Degree of protection (Relay) | RT I (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Temperature | - |
| Humidity | - |
| Vibration | - |
| EMC | - |
| Enclosure | - |
| Low Voltage Directive | - |
| Electromagnetic compatibility | - |
| Standards/regulations | IEC 60947-5-1 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | - |
Get A Quote for Phoenix 4 Changeover Relay Module RIF-2-RPT-LDP-24DC/4X21 AU part no: 2908332 at unbeatable prices. Detailed Specifications of RIF-2-RPT-LDP-24DC/4X21 AU, 2908332 feature Relay Module type and RIFLINE complete Product family a versatile solution for Universal applications. This relay module features a mechanical service life of approx. 2x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 1.01 W, it operates efficiently at a nominal input voltage of 24 V DC, within an input voltage range of 19.2 V DC ... 30 V DC (20 °C). The module has a typical input current of 42 mA at UN, with a response time of 13 ms and a release time of 14 ms. It is equipped with a Freewheeling diode for protection and includes 4 changeover contacts made from Push-in connection Connection method. Match Your Needs with a Quote for your requirement of Phoenix 4 Changeover Relay Module. Our pricing and support are unrivaled, especially when compared to other Distributors.
