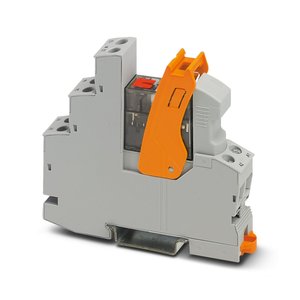

Phoenix RIF-1-RSC-LV-230AC/2X21MS Relay Module
The Phoenix RIF-1-RSC-LV-230AC/2X21MS Relay Module (Part No: 2905662 ) offers a 230 V AC (50/60 Hz) nominal input voltage UN, 184 V AC ... 253 V AC (20 ยฐC) input voltage range, polarized Drive, 4 ms ... 12 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | RIF-1-RSC-LV-230AC/2X21MS |
Phoenix RIF-1-RSC-LV-230AC/2X21MS Relay Module โ Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | RIFLINE complete |
| Application | Palm switch |
| Mechanical service life | approx. 5x 106 cycles |
| Insulation | Safe isolation between input and output |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.81 W |
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
| Rated surge voltage | 6 kV (Input/output) |
| Nominal input voltage UN | 230 V AC (50/60 Hz) |
| Input voltage range | 184 V AC ... 253 V AC (20 ยฐC) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 4.5 mA |
| Typical response time | 4 ms ... 12 ms |
| Typical release time | - |
| Protective circuit | Varistor |
| Operating voltage display | Yellow LED |
| Contact switching type | 2 changeover contacts |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 5 A (see diagram) |
| Maximum inrush current | 16 A (20 ms, N/O contacts) |
| Min. switching current | 10 mA (12 V) |
| Interrupting rating (ohmic load) max. | 192 W (at 24 V DC) |
| Switching capacity | - |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.5 mmยฒ ... 4 mmยฒ |
| Conductor cross section flexible | 0.5 mmยฒ ... 4 mmยฒ |
| Conductor cross section AWG | 20 ... 10 (solid) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Width | 16 mm |
| Height | 90 mm |
| depth | 75 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 (Housing) |
| Degree of protection (Relay) | RT II (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 ยฐC ... 45 ยฐC |
| Ambient temperature (storage/transport) | -40 ยฐC ... 85 ยฐC |
| Temperature | - |
| Humidity | - |
| Vibration | - |
| EMC | - |
| Enclosure | - |
| Low Voltage Directive | - |
| Electromagnetic compatibility | - |
| Standards/regulations | DIN EN 50178 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | - |
Reach Us by Email for Phoenix 230V AC Relay Module RIF-1-RSC-LV-230AC/2X21MS part no: 2905662 at Discounted Rates. Key Technical Features of RIF-1-RSC-LV-230AC/2X21MS, 2905662 are Relay Module type and RIFLINE complete Product family a versatile solution for Palm switch applications. This relay module features a mechanical service life of approx. 5x 106 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.81 W, it operates efficiently at a nominal input voltage of 230 V AC (50/60 Hz), within an input voltage range of 184 V AC ... 253 V AC (20 ยฐC). The module has a typical input current of 4.5 mA at UN, with a response time of 4 ms ... 12 ms and a release time of -. It is equipped with a Varistor for protection and includes 2 changeover contacts made from Screw connection Connection method. Navigate Your Needs with a Quote for your requirement of Phoenix 230V AC Relay Module. Our pricing and support are unrivaled, especially when compared to other Competitors.
