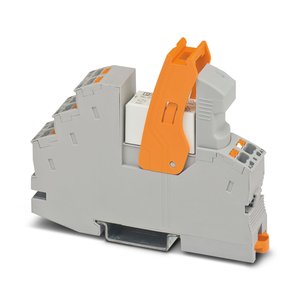

RIF-1-RPT-LDP-24DC/1X21: 2903342 - Phoenix Power Contact Relay Base

Technical Specifications of Phoenix Relay Base, Power Contact Relay RIF-1-RPT-LDP-24DC/1X21 2903342:

SpecValue
Product typeRelay Module
Nominal input voltage UN24 V DC
Connection methodPush-in connection
Mounting typeDIN rail mounting

Phoenix Relay Base, Power Contact Relay RIF-1-RPT-LDP-24DC/1X21, 2903342 Technical Specifications:

SpecificationValue
Product typeRelay Module
Product familyRIFLINE complete
ApplicationUniversal
Mechanical service lifeapprox. 3x 107 cycles
InsulationSafe isolation between input and output
Overvoltage categoryIII
Pollution degree2
Maximum power dissipation for nominal condition0.43 W
Test voltage (Winding/contact)4 kVrms (50 Hz, 1 min., winding/contact)
Test voltage (Changeover contact/changeover contact)-
Rated surge voltage6 kV (Input/output)
Nominal input voltage UN24 V DC
Input voltage range19.2 V DC ... 33.6 V DC (20 Β°C)
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN18 mA
Typical response time8 ms
Typical release time10 ms
Protective circuitFreewheeling diode
Operating voltage displayYellow LED
Contact switching type1 changeover contact
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Limiting continuous current11 A (see diagram)
Maximum inrush current50 A (20 ms, N/O contacts)
Min. switching current10 mA (12 V)
Interrupting rating (ohmic load) max.264 W (24 V DC)
Switching capacity-
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section rigid0.14 mmΒ² ... 1.5 mmΒ²
Conductor cross section flexible0.14 mmΒ² ... 1.5 mmΒ²
Conductor cross section AWG26 ... 16 (solid)
Tightening torque-
Width16 mm
Height96 mm
depth75 mm
Colorgray (RAL 7042)
Flammability rating according to UL 94V2 (Housing)
Degree of protection (Relay)RT III (Relay)
Degree of protection (Relay base)IP20 (Relay base)
Ambient temperature (operation)-40 Β°C ... 70 Β°C
Ambient temperature (storage/transport)-40 Β°C ... 85 Β°C
Temperature-
Humidity-
Vibration-
EMC-
Enclosure-
Low Voltage Directive-
Electromagnetic compatibility-
Standards/regulationsIEC 60947-5-1
Mounting TypeDIN rail mounting
Mounting positionany
Contact Connection type-
Output fuse-
Degree of protection (Installation location)-
Reach Us by Email for Phoenix Relay Base, Power Contact Relay RIF-1-RPT-LDP-24DC/1X21 part no: 2903342 at Discounted Rates. Key Technical Features of RIF-1-RPT-LDP-24DC/1X21, 2903342 are Relay Module type and RIFLINE complete Product family a versatile solution for Universal applications. This relay module features a mechanical service life of approx. 3x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.43 W, it operates efficiently at a nominal input voltage of 24 V DC, within an input voltage range of 19.2 V DC ... 33.6 V DC (20 Β°C). The module has a typical input current of 18 mA at UN, with a response time of 8 ms and a release time of 10 ms. It is equipped with a Freewheeling diode for protection and includes 1 changeover contact made from Push-in connection Connection method. Navigate Your Needs with a Quote for your requirement of Phoenix Relay Base, Power Contact Relay. Our pricing and support are unrivaled, especially when compared to other Competitors.
