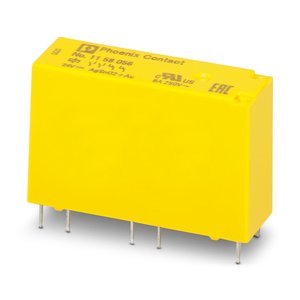

Phoenix REL-SR- 24DC/2X1AU/2X2AU/FG Single Relay
The Phoenix REL-SR- 24DC/2X1AU/2X2AU/FG Single Relay (Part No: 1158056 ) offers a 24 V DCnominal input voltage UN, 19.2 V DC ... 26.4 V DC input voltage range, 250 V AC switching voltage, Plug / solder connection method. Manufactured by Phoenix under the Phoenix Single Relay category, this model belongs to the Phoenix REL Series.
| Brand | Phoenix Contact |
| Product Type | Single Relay |
| Model Number | REL-SR- 24DC/2X1AU/2X2AU/FG |
Phoenix REL-SR- 24DC/2X1AU/2X2AU/FG Single Relay β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | approx. 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Service life electrical | - |
| Maximum power dissipation for nominal condition | 0.36 W |
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 26.4 V DC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 15 mA |
| Typical response time | 5 ms |
| Coil voltage | - |
| Status display | - |
| Contact switching type | 2 N/O contacts, 2 N/C contacts, force-guided |
| Type of switch contact | Single contact |
| Contact material | AgSnO, hard gold-plated |
| Maximum switching voltage | 250 V AC |
| Minimum switching voltage | 10 V |
| Limiting continuous current | 6 A |
| Maximum inrush current | 35 A (20 ms) |
| Min. switching current | 5 mA (10 V) |
| Interrupting rating (ohmic load) max. | 144 W (24 V DC) |
| Connection method | Plug / solder connection |
| Width | 13 mm |
| Height | 24 mm |
| Depth | 40 mm |
| Degree of protection | - |
| Degree of protection (Installation location) | IP54 (Installation location) |
| Ambient temperature (operation) | -40 Β°C ... 85 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Standards/regulations | DIN EN 50178 |
| Mounting type | - |
| Mounting position | any |
| Mains frequency | - |
| Typical release time range | - |
| Coil resistance | - |
| Switching capacity | 2 A (24 V, DC13) |
| Motor load according to UL 508 | - |
| Input power dissipation for UN | - |
| 3-phase motor load | - |
| Product family | - |
| Relay type | - |
| Test voltage () | - |
| Degree of protection (Relay) | RT II |
| Inrush current, minimum | - |
| Non-operate voltage | - |
| Safe operate voltage | - |
| Test voltage (N/O contact / N/O contact) | - |
Talk to Our Engineer for Phoenix 2 N/O Contacts and 2 N/C Contacts REL-SR- 24DC/2X1AU/2X2AU/FG part no: 1158056 with exclusive offers. Core System Specifications of REL-SR- 24DC/2X1AU/2X2AU/FG, 1158056 are mechanical service life of approx. 107 cycles, designed for demanding industrial applications. The sensor operates at a nominal input voltage of 24 V DC, with an input voltage range of 19.2 V DC ... 26.4 V DC. The typical input current at UN is 15 mA with a response time of 10 ms. The sensor supports a maximum switching voltage of 250 V AC, and a minimum switching voltage of 10 V. It has a limiting continuous current of 6 A, with a maximum inrush current of 35 A (20 ms), and a minimum switching current of 5 mA (10 V). The interrupting rating for ohmic loads is 144 W (24 V DC). The connection method is via a Plug / solder connection, with a degree of protection rated at -. The sensor operates reliably in ambient temperatures ranging from -40 Β°C ... 85 Β°C. Don't Miss Out on a Quote for your requirement of Phoenix 2 N/O Contacts and 2 N/C Contacts. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
