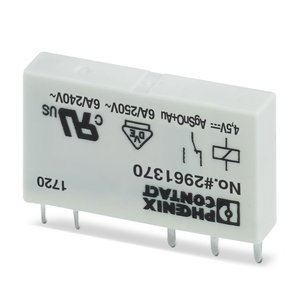

Phoenix REL-MR- 4,5DC/21AU Single Relay
The Phoenix REL-MR- 4,5DC/21AU Single Relay (Part No: 2961370 ) offers a 4.5 V DCnominal input voltage UN, 2.7 V DC ... 12.4 V DC input voltage range, 250 V AC switching voltage, Plug / solder connection method. Manufactured by Phoenix under the Phoenix Single Relay category, this model belongs to the Phoenix REL Series.
| Brand | Phoenix Contact |
| Product Type | Single Relay |
| Model Number | REL-MR- 4,5DC/21AU |
Phoenix REL-MR- 4,5DC/21AU Single Relay – Technical Specifications
| Specification | Value |
|---|---|
| Product type | Single relay |
| Mechanical service life | 2x 107 cycles |
| Overvoltage category | III |
| Pollution degree | 3 |
| Maximum power dissipation for nominal condition | 0.17 W |
| Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
| Nominal input voltage UN | 4.5 V DC |
| Input voltage range | 2.7 V DC ... 12.4 V DC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical input current at UN | 38 mA |
| Typical response time | 5 ms |
| Typical release time | 2.5 ms |
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC |
| Minimum switching voltage | 5 V (at 100 mA) |
| Limiting continuous current | 6 A |
| Maximum inrush current | on request |
| Min. switching current | 10 mA (at 12 V) |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| Connection method | Plug / solder connection |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | IEC 60664 |
| Mounting position | any |
| Coil resistance | 119 Ω ±10 % (at 20 °C) |
| Switching capacity | 2 A (at 24 V, DC13) |
Talk to Our Engineer for Phoenix 4.5 V DC Input Voltage Single Relays REL-MR- 4,5DC/21AU part no: 2961370 with exclusive offers. Core System Specifications of REL-MR- 4,5DC/21AU, 2961370 are mechanical service life of 2x 107 cycles, designed for demanding industrial applications. The sensor operates at a nominal input voltage of 4.5 V DC, with an input voltage range of 2.7 V DC ... 12.4 V DC. The typical input current at UN is 38 mA with a response time of 5 ms. The sensor supports a maximum switching voltage of 250 V AC, and a minimum switching voltage of 5 V (at 100 mA). It has a limiting continuous current of 6 A, with a maximum inrush current of on request, and a minimum switching current of 10 mA (at 12 V). The interrupting rating for ohmic loads is 140 W (at 24 V DC). The connection method is via a Plug / solder connection, with a degree of protection rated at . The sensor operates reliably in ambient temperatures ranging from -40 °C ... 85 °C. Don't Miss Out on a Quote for your requirement of Phoenix 4.5 V DC Input Voltage Single Relays. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
