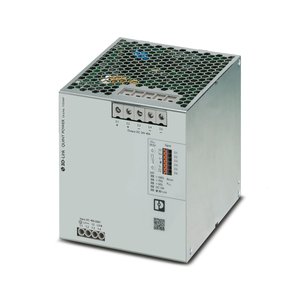

Phoenix QUINT4-PS/3AC/24DC/40/IOL Power Supply
The Phoenix QUINT4-PS/3AC/24DC/40/IOL Power Supply (Item No: 1151047 ) offers a ± 260 V DC ... 300 V DC -13 % ... +30 %input voltage range, typ. 95.4 % (400 V AC) efficiency, 24 V DC nominal output voltage, 40 A nominal output current. Manufactured by Phoenix under the Phoenix Power Supply category, this model belongs to the Phoenix QUINT Series.
| Brand | Phoenix Contact |
| Product Type | Quint Power Supply |
| Model Number | QUINT4-PS/3AC/24DC/40/IOL |
Phoenix QUINT4-PS/3AC/24DC/40/IOL Power Supply – Technical Specifications
| Specification | Value |
|---|---|
| Nominal input voltage range | ± 260 V DC ... 300 V DC |
| Input voltage range | ± 260 V DC ... 300 V DC -13 % ... +30 % |
| Inrush current | typ. 1.5 A (at 25 °C) |
| Frequency range (fN) | 50 Hz ... 60 Hz -10 % ... +10 % |
| Efficiency | typ. 95.4 % (400 V AC) |
| Nominal output voltage | 24 V DC |
| Nominal output current (IN) | 40 A |
| Residual ripple | < 50 mVPP (with nominal values) |
| Short-circuit-proof | yes |
| Power loss nominal load max. | < 45 W (400 V AC) |
| Insulation voltage input/output | 4 kV AC (type test) |
| Mounting type | DIN rail mounting |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| EMC requirements for noise emission | EN 61000-6-3 |
| EMC requirements for noise immunity | EN 61000-6-1 |
Obtain a Quote for Phoenix 3-Phase 24 VDC Power Supply QUINT4-PS/3AC/24DC/40/IOL part no: 1151047 at economical prices. Specifications Overview for QUINT4-PS/3AC/24DC/40/IOL, 1151047 reveals Operating within an input voltage range of ± 260 V DC ... 300 V DC -13 % ... +30 % this sensor ensures versatile power compatibility. It features a typical inrush current of typ. 1.5 A (at 25 °C) optimizing startup performance. With an impressive efficiency of approximately typ. 95.4 % (400 V AC) the sensor provides energy-efficient operation. The nominal output voltage is 24 V DC with a robust output current of 40 A making it ideal for industrial applications. The residual ripple is kept under 60 °C Derating: 2,5 %/K). Take the First Step with a Quote for your requirement of Phoenix 3-Phase 24 VDC Power Supply. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
