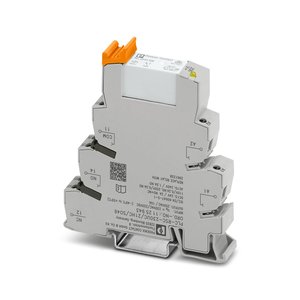

Phoenix PLC-RSC-230UC/21HC/SO46 Relay Module
The Phoenix PLC-RSC-230UC/21HC/SO46 Relay Module (Part No: 1125943 ) offers a 230 V AC nominal input voltage UN, 179.4 V AC ... 264.5 V AC (20 °C) input voltage range, polarized Drive, 7 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | PLC-RSC-230UC/21HC/SO46 |
Phoenix PLC-RSC-230UC/21HC/SO46 Relay Module – Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | PLC-INTERFACE |
| Application | Filter to prevent interference |
| Mechanical service life | approx. 3x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Maximum power dissipation for nominal condition | 2.3 W |
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | 4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths) |
| Nominal input voltage UN | 230 V AC |
| Input voltage range | 179.4 V AC ... 264.5 V AC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 8.5 mA (50 Hz) |
| Typical response time | 7 ms |
| Typical release time | 10 ms |
| Protective circuit | RC element |
| Operating voltage display | - |
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 6 A |
| Maximum inrush current | 30 A (300 ms, N/O contact) |
| Min. switching current | 10 mA (12 V) |
| Interrupting rating (ohmic load) max. | 144 W (24 V DC) |
| Switching capacity | 2 A (DC13, 24 V) |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm |
| Width | 14 mm |
| Height | 80 mm |
| depth | 94 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | - |
| Degree of protection (Relay) | RT II (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Temperature | D |
| Humidity | A |
| Vibration | B/C |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
| Standards/regulations | IEC 60947-5-1 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | IP54 (Installation location) |
Obtain a Quote for Phoenix 230V Input Voltage Relay PLC-RSC-230UC/21HC/SO46 part no: 1125943 at economical prices. Specifications Overview for PLC-RSC-230UC/21HC/SO46, 1125943 reveals Relay Module type and PLC-INTERFACE Product family a versatile solution for Filter to prevent interference applications. This relay module features a mechanical service life of approx. 3x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 2.3 W, it operates efficiently at a nominal input voltage of 230 V AC, within an input voltage range of 179.4 V AC ... 264.5 V AC (20 °C). The module has a typical input current of 8.5 mA (50 Hz) at UN, with a response time of 7 ms and a release time of 10 ms. It is equipped with a RC element for protection and includes 1 changeover contact made from Screw connection Connection method. Take the First Step with a Quote for your requirement of Phoenix 230V Input Voltage Relay. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
