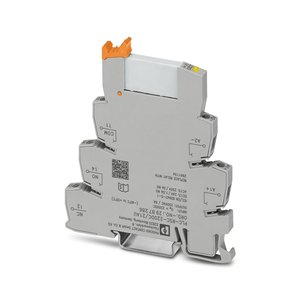

Phoenix PLC-RSC-220DC/21AU Relay Module
The Phoenix PLC-RSC-220DC/21AU Relay Module (Part No: 2987286 ) offers a 220 V DC nominal input voltage UN, 179.4 V DC ... 264.5 V DC (20 Β°C) input voltage range, polarized Drive, 7 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | PLC-RSC-220DC/21AU |
Phoenix PLC-RSC-220DC/21AU Relay Module β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | PLC-INTERFACE |
| Application | Universal |
| Mechanical service life | 2x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | - |
| Pollution degree | - |
| Maximum power dissipation for nominal condition | 0.66 W |
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | 4 kV |
| Nominal input voltage UN | 220 V DC |
| Input voltage range | 179.4 V DC ... 264.5 V DC (20 Β°C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 3 mA |
| Typical response time | 7 ms |
| Typical release time | 15 ms |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Yellow LED |
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | AgSnO, hard gold-plated |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 50 mA |
| Maximum inrush current | 50 mA |
| Min. switching current | 10 mA (at 12 V) |
| Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
| Switching capacity | - |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section flexible | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm |
| Width | 6.2 mm |
| Height | 80 mm |
| depth | 94 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | - |
| Degree of protection (Relay) | - |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -25 Β°C ... 55 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Temperature | D |
| Humidity | A |
| Vibration | B/C |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
| Standards/regulations | IEC 60947-5-1 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | 4 A gL/gG NEOZED |
| Degree of protection (Installation location) | - |
Ask for the Pricing of Phoenix Contact 220V Relay Module PLC-RSC-220DC/21AU part no: 2987286 at unbeatable prices. Detailed Specifications of PLC-RSC-220DC/21AU, 2987286 feature Relay Module type and PLC-INTERFACE Product family a versatile solution for Universal applications. This relay module features a mechanical service life of 2x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.66 W, it operates efficiently at a nominal input voltage of 220 V DC, within an input voltage range of 179.4 V DC ... 264.5 V DC (20 Β°C). The module has a typical input current of 3 mA at UN, with a response time of 7 ms and a release time of 15 ms. It is equipped with a Reverse polarity protection; Polarity protection diode for protection and includes 1 changeover contact made from Screw connection Connection method. Now's the Time to Secure a Quote for your requirement of Phoenix Contact 220V Relay Module. We're committed to offering more favorable pricing and more responsive support than other Traders.
